Adult Elective Orthopaedics and Spine
Chapter 5 Foot and ankle
source p. 270
Structured oral examination question 1#
source p. 271
Lateral ligament instability of the ankle
EXAMINER
Tell me what this diagram (Figure 5.1) represents and name the structures labelled 2, 3 and 5.
Tell me what this diagram (Figure 5.1) represents and name the structures labelled 2, 3 and 5.
CANDIDATE
This diagram is a representation of the lateral aspect of the ankle showing the bony and ligamentous structures. Structure 2 is the anterior talofibular ligament, structure 3 is the calcaneofibular ligament and structure 5 is the posterior distal tibiofibular ligament.
This diagram is a representation of the lateral aspect of the ankle showing the bony and ligamentous structures. Structure 2 is the anterior talofibular ligament, structure 3 is the calcaneofibular ligament and structure 5 is the posterior distal tibiofibular ligament.
EXAMINER
What structures are injured in a lateral ligament injury?
What structures are injured in a lateral ligament injury?
CANDIDATE
The mechanism is usually a rotational injury with sequential failure of the ligaments from front to back, hence the anterior talofibular ligament or ATFL is most commonly injured followed by the calcaneofibular ligament or CF Land the posterior talofibular ligament is the least frequently injured.
The mechanism is usually a rotational injury with sequential failure of the ligaments from front to back, hence the anterior talofibular ligament or ATFL is most commonly injured followed by the calcaneofibular ligament or CF Land the posterior talofibular ligament is the least frequently injured.
EXAMINER
How would you go about diagnosing a lateral ligament injury to the ankle?
How would you go about diagnosing a lateral ligament injury to the ankle?
CANDIDATE
In the acute se tingI would expect the patient to give a history of an episode of a twisting incident resulting insignificant pain and swelling. There may be a history of recurrent sprains and instability. Acutely the lateral side of the ankle anterior and inferior to the distal end of the fibula would be swollen and tender but discomfort may make it difficult to elicit definite signs of instability. In apa tien t with a chronic history the clinical signs of instability would be a positive anterior drawer testor talar tilt t est.
In the acute se tingI would expect the patient to give a history of an episode of a twisting incident resulting insignificant pain and swelling. There may be a history of recurrent sprains and instability. Acutely the lateral side of the ankle anterior and inferior to the distal end of the fibula would be swollen and tender but discomfort may make it difficult to elicit definite signs of instability. In apa tien t with a chronic history the clinical signs of instability would be a positive anterior drawer testor talar tilt t est.
EXAMINER
Tell me more about those two tests.
Tell me more about those two tests.
CANDIDATE
The patient is examined siting with their legs over the edge of the couch or siting in a chair to relax the gastrocnemius soleus complex. For the anterior drawer test the distal tibia is stabilized in one hand. The other hand is used to grasp the heel then draw the foot anteriorly in relation to the talus. Pain or excess anterior translation or a sulcus sign developing at the anterolateral corner of the ankle are signs of an ATFL injury. The other ankle must be examined for comparison. The talar tilt t est involves inversion of the ankle while placing a finger on the anterolateral corner of the joint. The lack of a firm endpoint or tilt in excess of the normal side suggests instability and the CF Lis considered to be injured if this testis positive.
The patient is examined siting with their legs over the edge of the couch or siting in a chair to relax the gastrocnemius soleus complex. For the anterior drawer test the distal tibia is stabilized in one hand. The other hand is used to grasp the heel then draw the foot anteriorly in relation to the talus. Pain or excess anterior translation or a sulcus sign developing at the anterolateral corner of the ankle are signs of an ATFL injury. The other ankle must be examined for comparison. The talar tilt t est involves inversion of the ankle while placing a finger on the anterolateral corner of the joint. The lack of a firm endpoint or tilt in excess of the normal side suggests instability and the CF Lis considered to be injured if this testis positive.
EXAMINER
What other clinical findings may be positive in apa tien t with recurrent ankle sprains?
What other clinical findings may be positive in apa tien t with recurrent ankle sprains?
CANDIDATE
Ankle sprains are more common inpatients with a cavus foot or hypermobility.
Ankle sprains are more common inpatients with a cavus foot or hypermobility.
EXAMINER
If you suspect a lateral ligament injury how will you proceed in managing this patient?
If you suspect a lateral ligament injury how will you proceed in managing this patient?
CANDIDATE
The first step in management would be rehabilitation with physiotherapy, concentrating on peroneal strengthening and proprioceptive training. If the dynamic stabilizers of the ankle are well- conditioned the majority of patients recover well from a ligament injury. Bracing may be of benefit.
The first step in management would be rehabilitation with physiotherapy, concentrating on peroneal strengthening and proprioceptive training. If the dynamic stabilizers of the ankle are well- conditioned the majority of patients recover well from a ligament injury. Bracing may be of benefit.
EXAMINER
What percentage of patients recover?
What percentage of patients recover?
source p. 272
CANDIDATE
The vast majority.
The vast majority.
EXAMINER
[That’s a bit vague] Do you know a figure?
[That’s a bit vague] Do you know a figure?
CANDIDATE
Sorry. Around 20% of patients develop symptoms of chronic ankle instability such as recurrent sprains, weakness and instability. Candidates should know this and may lose a mark.
Sorry. Around 20% of patients develop symptoms of chronic ankle instability such as recurrent sprains, weakness and instability. Candidates should know this and may lose a mark.
EXAMINER
How do you determine severe injuries?
How do you determine severe injuries?
CANDIDATE
Severe extensive bruising, severe pain on moving the foot, inability to bear weight are features of a severe injury. The options for acute grade III injuries include cast immobilization or functional management. Cast immobilization involves 3 weeks in a below-knee walking cast followed by 12 weeks proprioceptive rehabilitation. Functional management involves early mobilization with external support and a protocol of rest, ice, compression and elevation. This is followed by a rehabilitation programme that comprises ROM exercises, muscle strengthening, proprioception (wobble boards) and activity -specific training.
Severe extensive bruising, severe pain on moving the foot, inability to bear weight are features of a severe injury. The options for acute grade III injuries include cast immobilization or functional management. Cast immobilization involves 3 weeks in a below-knee walking cast followed by 12 weeks proprioceptive rehabilitation. Functional management involves early mobilization with external support and a protocol of rest, ice, compression and elevation. This is followed by a rehabilitation programme that comprises ROM exercises, muscle strengthening, proprioception (wobble boards) and activity -specific training.
EXAMINER
What if the patient continues to have significant symptoms despite adequate rehabilitation?
What if the patient continues to have significant symptoms despite adequate rehabilitation?
CANDIDATE
Apa tien t that fails to recover would require investigation. I would begin with simple weight- bearing radiographs of the ankle. Other investigations includes tress X-rays of the ankle and/or ultrasonography to assess the degree of ligamentous injury and if the patient is still having significant pain and swelling an MRI scan to look for additional pathology.
Apa tien t that fails to recover would require investigation. I would begin with simple weight- bearing radiographs of the ankle. Other investigations includes tress X-rays of the ankle and/or ultrasonography to assess the degree of ligamentous injury and if the patient is still having significant pain and swelling an MRI scan to look for additional pathology.
EXAMINER
What other conditions would you be looking for?
What other conditions would you be looking for?
CANDIDATE
My differential diagnosis for an ankle sprain that does not improve would be peroneal tendon pathology such as a split tear or subluxing tendons, intra-articular pathology such as an osteochondral defect of the talus or loose body, or non-union of an anterior calcaneal process fracture.
My differential diagnosis for an ankle sprain that does not improve would be peroneal tendon pathology such as a split tear or subluxing tendons, intra-articular pathology such as an osteochondral defect of the talus or loose body, or non-union of an anterior calcaneal process fracture.
EXAMINER
Do you know any scoring systems for chronic lateral instability?
Do you know any scoring systems for chronic lateral instability?
CANDIDATE
No, sorry. Karlsson score, American orthopaedic foot and ankle score (AOFAS) and the foot and ankle outcome score (FAOS).
No, sorry. Karlsson score, American orthopaedic foot and ankle score (AOFAS) and the foot and ankle outcome score (FAOS).
EXAMINER
What are the surgical options for management of an isolated lateral ankle ligament complex injury in a young patient who has failed to respond to non-operativ e treatments?
What are the surgical options for management of an isolated lateral ankle ligament complex injury in a young patient who has failed to respond to non-operativ e treatments?
CANDIDATE
The options f all into three broad categories. (1) Anatomic repair, (2) non-anatomic reconstruction, (3) anatomic tenodesis reconstruction.
The options f all into three broad categories. (1) Anatomic repair, (2) non-anatomic reconstruction, (3) anatomic tenodesis reconstruction.
EXAMINER
What is an anatomic repair?
What is an anatomic repair?
CANDIDATE
Anatomic repair involves the use of endogenous ligamentous tissue to restore the ligament. This is considered in cases when adequate tissue is present.
Anatomic repair involves the use of endogenous ligamentous tissue to restore the ligament. This is considered in cases when adequate tissue is present.
source p. 273
The Broström and the ‘modified Broström’ are the most widely used procedures for anatomic repair of the lateral ligament complex.
The complication rate is lower (fewer wounds, less risk of injury to the superficial peroneal nerve and decreased incidence of degenerative joint disease) compared to non-anatomical reconstructions with minimal effect on subtalar movement and a quicker rehab.
Failures have been atiribut ed to a variety of factors, including generalized ligamentous laxity, poor tissue quality , previous surgical repair, long-standing instability, and cavo-varus deformity.
EXAMINER
What do you mean by a non-anatomic reconstruction (checkrein procedure)?
What do you mean by a non-anatomic reconstruction (checkrein procedure)?
CANDIDATE
Non-anatomic reconstruction does not replicate the normal course and anatomy of the ATFL and CFL. Examples of non-anatomic reconstructive procedures include the Chrisman–Snook procedure, the Watson-Jones procedure and the Evans reconstruction, all utilizing the neighbouring peroneus brevis tendon to restrict motion without repair of the injured ligaments.
Non-anatomic reconstruction does not replicate the normal course and anatomy of the ATFL and CFL. Examples of non-anatomic reconstructive procedures include the Chrisman–Snook procedure, the Watson-Jones procedure and the Evans reconstruction, all utilizing the neighbouring peroneus brevis tendon to restrict motion without repair of the injured ligaments.
EXAMINER
What do we mean by anatomical reconstruction?
What do we mean by anatomical reconstruction?
CANDIDATE
These procedures utilize autogenous tendon gratis such as semitendinosus, gracilis or plantaris that are rerouted in such a way as to replicate the anatomic positions of the A TFL and CFL origin and insertion sites.
These procedures utilize autogenous tendon gratis such as semitendinosus, gracilis or plantaris that are rerouted in such a way as to replicate the anatomic positions of the A TFL and CFL origin and insertion sites.
EXAMINER
Are intra-articular lesions common in this group?
Are intra-articular lesions common in this group?
CANDIDATE
Various studies have found chondral injuries in a significant proportion of patients with chronic ankle instability. In one study associated intra-articular pathology amenable to arthroscopic treatment was identified in 83% of patients undergoing Brostrom repair [1]. Arthroscopic abrasion, curettage, drilling or microfracture can be used for the OCLs.
Various studies have found chondral injuries in a significant proportion of patients with chronic ankle instability. In one study associated intra-articular pathology amenable to arthroscopic treatment was identified in 83% of patients undergoing Brostrom repair [1]. Arthroscopic abrasion, curettage, drilling or microfracture can be used for the OCLs.
EXAMINER
Apa tien t asks how successful a ligament repair will be, what will you tell them?
Apa tien t asks how successful a ligament repair will be, what will you tell them?
CANDIDATE
I would expect a successful result in approximately 80% of patients.
I would expect a successful result in approximately 80% of patients.
EXAMINER
What are the reported results of using a free hamstring graft?
What are the reported results of using a free hamstring graft?
CANDIDATE
The reports are good but there are some reports of weakness of knee flexion beyond 70°, particularly when both gracilis and semitendinosus tendons are harvested. This ligament reconstruction can be performed through short incisions effectively making it a minimally invasive technique. The harvested graft semitendinosus or gracilis) is secured in a tunnel in the calcaneum using interference or biotendinosis screws then passed through a tunnel in the fibula and finally secured under tension into a further tunnel in the talus. This leaves the stabilizing evertor muscles intact together while reconstructing the A TFL and CF Land so may also be considered to be an anatomic repair.
The reports are good but there are some reports of weakness of knee flexion beyond 70°, particularly when both gracilis and semitendinosus tendons are harvested. This ligament reconstruction can be performed through short incisions effectively making it a minimally invasive technique. The harvested graft semitendinosus or gracilis) is secured in a tunnel in the calcaneum using interference or biotendinosis screws then passed through a tunnel in the fibula and finally secured under tension into a further tunnel in the talus. This leaves the stabilizing evertor muscles intact together while reconstructing the A TFL and CF Land so may also be considered to be an anatomic repair.
source p. 274
The selected fixation device should be secure enough to maintain appropriate graft tension intra operatively to support healing and potentially allow for early joint motion
EXAMINER
Thankyou.
Thankyou.

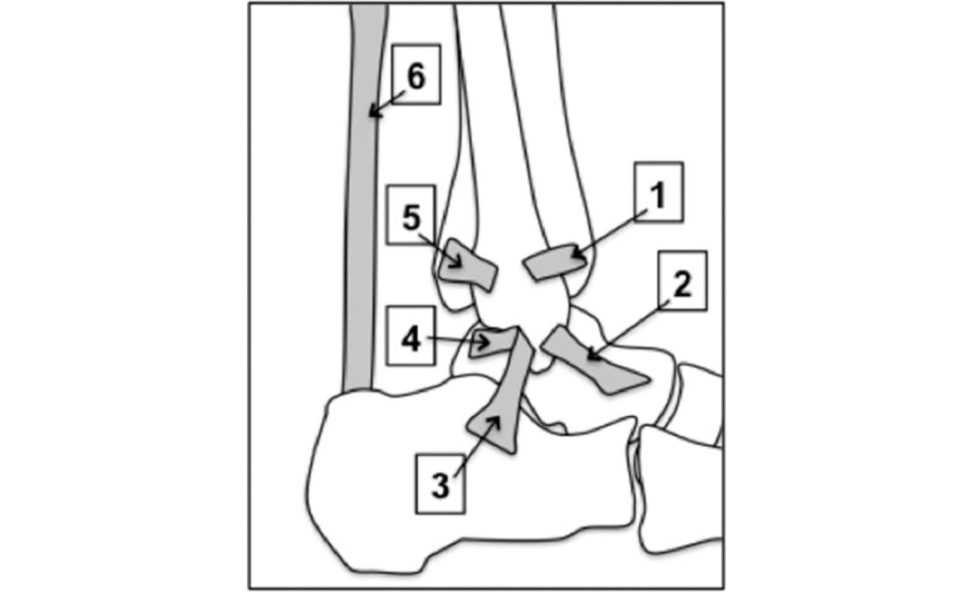

Figure 5.1 Diagram of the lateral ankle ligaments.
source p. 275
Structured oral examination question 2#
source p. 276
Ankle arthritis
EXAMINER
Describe the findings on this X-ray (Figure 5.2).
Describe the findings on this X-ray (Figure 5.2).
CANDIDATE
This is an AP weight-bearing radiograph of a left ankle showing narrowing of the joint space and some subchondral sclerosis. There is also evidence of a previous fibula fracture superior to the syndesmosis and varus angulation of the ankle. These findings are consistent with post-traumatic arthritis.
This is an AP weight-bearing radiograph of a left ankle showing narrowing of the joint space and some subchondral sclerosis. There is also evidence of a previous fibula fracture superior to the syndesmosis and varus angulation of the ankle. These findings are consistent with post-traumatic arthritis.
EXAMINER
What are the most common causes of arthritis of the ankle?
What are the most common causes of arthritis of the ankle?
CANDIDATE
The most common cause of ankle arthritis is pos t-traumatic arthritis. Other causes include inflammatory, neuropathic and septic arthritis. Primary osteoarthritis is thought to be relatively uncommon. In a recent epidemiological survey, the onset of ankle osteoarthritis was atiribut able to a previous rotational fracture (37.0% of cases), recurrent sprains (14.6%), a single sprain (13.7%), pilon fracture (9.0%), tibial shaft fracture (8.5%) and osteochondral lesion of the talus (OLT) (4.7%) [2].
The most common cause of ankle arthritis is pos t-traumatic arthritis. Other causes include inflammatory, neuropathic and septic arthritis. Primary osteoarthritis is thought to be relatively uncommon. In a recent epidemiological survey, the onset of ankle osteoarthritis was atiribut able to a previous rotational fracture (37.0% of cases), recurrent sprains (14.6%), a single sprain (13.7%), pilon fracture (9.0%), tibial shaft fracture (8.5%) and osteochondral lesion of the talus (OLT) (4.7%) [2].
EXAMINER
How is this patient likely to present?
How is this patient likely to present?
CANDIDATE
The patient is likely to complain of pain, restriction of movement, deformity and difficulty in undertaking activities of daily living (ADLs).
The patient is likely to complain of pain, restriction of movement, deformity and difficulty in undertaking activities of daily living (ADLs).
EXAMINER
Are you aware of any classification systems for arthritis of the ankle?
Are you aware of any classification systems for arthritis of the ankle?
CANDIDATE
No, I am not aware of any classification systems specific to the ankle. The Kellgren and Lawrence Radiographic Criteria can be used [3].
No, I am not aware of any classification systems specific to the ankle. The Kellgren and Lawrence Radiographic Criteria can be used [3].
EXAMINER
The X-ray you have been shown belongs to a 42-year-old manual worker who had an ankle fracture 7 years ago that was managed non-operativ ely. Describe your management strategy for this patient.
The X-ray you have been shown belongs to a 42-year-old manual worker who had an ankle fracture 7 years ago that was managed non-operativ ely. Describe your management strategy for this patient.
CANDIDATE
I would first want to take a full history and examine him, then obtain a lateral standing radiograph.
I would first want to take a full history and examine him, then obtain a lateral standing radiograph.
EXAMINER
Tell me about the management options a vailable for ankle arthritis.
Tell me about the management options a vailable for ankle arthritis.
CANDIDATE
I would start with conservative measures and the options include NS AIDs, activity modification footwear modification with a cushioned sole and rocker boft om shoe, an ankle brace or AFO, intra-articular steroid injection or visc o-supplementation and physiotherapy. PRP injections have been used inpatients with osteoarthritis. One study reported a strong positive effect on pain and function after four PRP injections a t weekly intervals [4].
I would start with conservative measures and the options include NS AIDs, activity modification footwear modification with a cushioned sole and rocker boft om shoe, an ankle brace or AFO, intra-articular steroid injection or visc o-supplementation and physiotherapy. PRP injections have been used inpatients with osteoarthritis. One study reported a strong positive effect on pain and function after four PRP injections a t weekly intervals [4].
EXAMINER
What surgical options are available?
What surgical options are available?
source p. 277
CANDIDATE
There are two types of surgical option a vailable, those aimed to ‘buy time ’ or provide temporary relief and definitive treatments. The temporizing measures are debridement of the joint which can be performed arthroscopically or open depending on the extent of disease and should be aimed at treating identifiable causes of symptoms such as removing loose bodies, trimming anterior osteophytes which may give impingement symptoms, or debriding loose areas of articular cartilage and areas of synovitis. The other option is distraction arthroplasty [5]. The definitive surgical options are ankle fusion or ankle replacement.
There are two types of surgical option a vailable, those aimed to ‘buy time ’ or provide temporary relief and definitive treatments. The temporizing measures are debridement of the joint which can be performed arthroscopically or open depending on the extent of disease and should be aimed at treating identifiable causes of symptoms such as removing loose bodies, trimming anterior osteophytes which may give impingement symptoms, or debriding loose areas of articular cartilage and areas of synovitis. The other option is distraction arthroplasty [5]. The definitive surgical options are ankle fusion or ankle replacement.
EXAMINER
What about arthroscopic debridement and osteophyte resection?
What about arthroscopic debridement and osteophyte resection?
CANDIDATE
This may be helpful inpatients with mild arthritis with a large osteophyte restricting motion or causing painful impingement at the extremes of motion. R est pain is unlikely to be relieved. This operation is unlikely to be successful with this particular patient.
This may be helpful inpatients with mild arthritis with a large osteophyte restricting motion or causing painful impingement at the extremes of motion. R est pain is unlikely to be relieved. This operation is unlikely to be successful with this particular patient.
EXAMINER
What about distraction arthroplasty?
What about distraction arthroplasty?
CANDIDATE
Distraction arthroplasty can be used on several joints including the hip, knee and ankle to preserve the joint space and decrease the weight-bearing load by using an external fixator to distract the respective joint. This is usually combined with an attempt at articular cartilage repair such as subchondral drilling or microfracture. Results of motion distraction are better than fixed distraction. Continuous joint movement is essential for cartilage regeneration and reduces overloading protecting fibrocartilage regeneration. Distraction arthroplasty is best suited for post-traumatic ankle osteoarthritis.
Distraction arthroplasty can be used on several joints including the hip, knee and ankle to preserve the joint space and decrease the weight-bearing load by using an external fixator to distract the respective joint. This is usually combined with an attempt at articular cartilage repair such as subchondral drilling or microfracture. Results of motion distraction are better than fixed distraction. Continuous joint movement is essential for cartilage regeneration and reduces overloading protecting fibrocartilage regeneration. Distraction arthroplasty is best suited for post-traumatic ankle osteoarthritis.
EXAMINER
Would you offer him distraction arthroplasty?
Would you offer him distraction arthroplasty?
CANDIDATE
My concerns about offering him distraction arthroplasty are that he is a young patient with a physical occupation. The distraction device needs to be kept in place for at least 3 months, which is a significant treatment commitment. Ankle function declines following joint distraction such that at 5 years around 50% of patients will either have gone on to ankle arthrodesis or replacement. Due to the relatively small number of studies with only level 4 evidence and no long-term follow-up I would rather offer him ankle arthrodesis [6].
My concerns about offering him distraction arthroplasty are that he is a young patient with a physical occupation. The distraction device needs to be kept in place for at least 3 months, which is a significant treatment commitment. Ankle function declines following joint distraction such that at 5 years around 50% of patients will either have gone on to ankle arthrodesis or replacement. Due to the relatively small number of studies with only level 4 evidence and no long-term follow-up I would rather offer him ankle arthrodesis [6].
EXAMINER
Isn’t fusion an outdated treatment now that ankle replacements are available?
Isn’t fusion an outdated treatment now that ankle replacements are available?
CANDIDATE
No, total ankle replacements are not suitable for every patient and ankle fusion is still considered the ‘gold standard’, especially so for younger patients with severe post-traumatic ankle arthritis.
No, total ankle replacements are not suitable for every patient and ankle fusion is still considered the ‘gold standard’, especially so for younger patients with severe post-traumatic ankle arthritis.
EXAMINER
So which patients should be considered for ankle replacement surgery?
So which patients should be considered for ankle replacement surgery?
CANDIDATE
Ankle replacement surgery could be considered in low-demand patients over the age of 60 years who have inflammatory arthritis or osteoarthritis. Bilateral disease or arthritis affecting adjacent joints is a relative indication. Contraindications include younger, more-activ epa tien ts, significant ankle instability, particularly deltoid ligament insufficiency, significant deformity, especially varus or valgus of more than 10°, peripheral vascular disease, a poor soft -tissue envelope, marked osteoporosis or avascular necrosis of the tibial plafond or talar dome.
Ankle replacement surgery could be considered in low-demand patients over the age of 60 years who have inflammatory arthritis or osteoarthritis. Bilateral disease or arthritis affecting adjacent joints is a relative indication. Contraindications include younger, more-activ epa tien ts, significant ankle instability, particularly deltoid ligament insufficiency, significant deformity, especially varus or valgus of more than 10°, peripheral vascular disease, a poor soft -tissue envelope, marked osteoporosis or avascular necrosis of the tibial plafond or talar dome.
EXAMINER
Do you know anything about the types of ankle replacement available?
Do you know anything about the types of ankle replacement available?
CANDIDATE
The earlier designs involved a two-component design such as the Agility total ankle replacement, which required fusion of the distal tibiofibular joint. Most modern designs are three- component uncemented mobile bearing prostheses.
The earlier designs involved a two-component design such as the Agility total ankle replacement, which required fusion of the distal tibiofibular joint. Most modern designs are three- component uncemented mobile bearing prostheses.
EXAMINER
Apa tien twants to know how longan ankle replacement will last. What will you tell them?
Apa tien twants to know how longan ankle replacement will last. What will you tell them?
CANDIDATE
The 10-year survival is about 85%, but there are fewer data available compared to knee and hip replacements [7–10].
The 10-year survival is about 85%, but there are fewer data available compared to knee and hip replacements [7–10].
EXAMINER
The 42-year-old patient we began by discussing wants an ankle replacement. What would you tell him?
The 42-year-old patient we began by discussing wants an ankle replacement. What would you tell him?
CANDIDATE
He is a young patient in a manual job. He wouldn’t be a candidate for total ankle replacement and I would explain to him that if his symptoms have not been controlled by non- operative measures then he requires definitive surgical treatment and an ankle fusion would be a better option for him.
He is a young patient in a manual job. He wouldn’t be a candidate for total ankle replacement and I would explain to him that if his symptoms have not been controlled by non- operative measures then he requires definitive surgical treatment and an ankle fusion would be a better option for him.
EXAMINER
He still w ants a replacement, as he is keen to get back to hill walking and sports and doesn’t want a stiff ankle. What will you tell him now?
He still w ants a replacement, as he is keen to get back to hill walking and sports and doesn’t want a stiff ankle. What will you tell him now?
CANDIDATE
He would be at risk of early failure with an ankle replacement due to his age and level of activity . Postoperative complications of total ankle replacement include infection, loosening , progressive intracomponent instability or deformity, subsidence and polyethylene failure. A fusion would provide a stable, pain-free ankle that would allow him to return to the majority of activities that he wishes to do. I would explain that many patients return to sports after ankle fusion. I would also explain that an ankle fusion would only sacrifice the residual movement that he has at his ankle joint and that his subtalar, midfoot and forefoot movements would still be present.
He would be at risk of early failure with an ankle replacement due to his age and level of activity . Postoperative complications of total ankle replacement include infection, loosening , progressive intracomponent instability or deformity, subsidence and polyethylene failure. A fusion would provide a stable, pain-free ankle that would allow him to return to the majority of activities that he wishes to do. I would explain that many patients return to sports after ankle fusion. I would also explain that an ankle fusion would only sacrifice the residual movement that he has at his ankle joint and that his subtalar, midfoot and forefoot movements would still be present.
EXAMINER
What position should his ankle be fused in?
What position should his ankle be fused in?
CANDIDATE
The ankle should be fused in 5° of hind-foot valgus, 10° of external rotation and the foot should be plantigrade.
The ankle should be fused in 5° of hind-foot valgus, 10° of external rotation and the foot should be plantigrade.
EXAMINER
What complications will you warn him about?
What complications will you warn him about?
CANDIDATE
Infection wound healing problems, neurovascular injury, DVT/PE, delayed union, malunion, non-union, hardware failure and the risk of exacerbating or developing arthritis in other joints (subtalar joint).
Infection wound healing problems, neurovascular injury, DVT/PE, delayed union, malunion, non-union, hardware failure and the risk of exacerbating or developing arthritis in other joints (subtalar joint).
EXAMINER
Anything new on the horizon?
Anything new on the horizon?
CANDIDATE
Ankle osteochondral allograft reconstruction involves replacing all or a large part of the arthritic ankle joint with a cadaveric bulk osteochondral allograft. Although in theory this procedure is a potentially desirable option for a young patient with advanced ankle arthritis reported results suggesta high failure rate.
Ankle osteochondral allograft reconstruction involves replacing all or a large part of the arthritic ankle joint with a cadaveric bulk osteochondral allograft. Although in theory this procedure is a potentially desirable option for a young patient with advanced ankle arthritis reported results suggesta high failure rate.
EXAMINER
Thankyou.
Thankyou.
Figure 5.2 X-ray showing ankle arthritis.
source p. 280
Structured oral examination question 3#
source p. 281
The rheumatoid foot
EXAMINER
Please have a look at this radiographic print and tell me what you see. (See Figure 5.3.)
Please have a look at this radiographic print and tell me what you see. (See Figure 5.3.)
CANDIDATE
This is an AP radiograph of a forefoot. There is a hallux valgus deformity with subluxation of the second metatarsophalangeal joint and destructive change of all the metatarsophalangeal joints. There may be deformities of the lesser t oes and I would like to see a lateral view to clarify this.
This is an AP radiograph of a forefoot. There is a hallux valgus deformity with subluxation of the second metatarsophalangeal joint and destructive change of all the metatarsophalangeal joints. There may be deformities of the lesser t oes and I would like to see a lateral view to clarify this.
EXAMINER
A lateral view would be very helpful. What do you think is the underlying diagnosis?
A lateral view would be very helpful. What do you think is the underlying diagnosis?
CANDIDATE
The changes suggest that this is an inflammatory polyarthropathy such as rheumatoid arthritis.
The changes suggest that this is an inflammatory polyarthropathy such as rheumatoid arthritis.
EXAMINER
Could it be anything else?
Could it be anything else?
CANDIDATE
The appearances could be secondary to a neuropathic process.
The appearances could be secondary to a neuropathic process.
EXAMINER
What might be the commonest neuropathic process that could cause these appearances?
What might be the commonest neuropathic process that could cause these appearances?
CANDIDATE
A peripheral neuropathy such as that associated with diabetes mellitus would be the commonest.
A peripheral neuropathy such as that associated with diabetes mellitus would be the commonest.
EXAMINER
How would you confirm your diagnosis?
How would you confirm your diagnosis?
CANDIDATE
A detailed history would be most informative Specifically, I would enquire about pain, swelling and sensory alteration.
A detailed history would be most informative Specifically, I would enquire about pain, swelling and sensory alteration.
EXAMINER
OK. This lady gives a clear history of progressive, painful, bilateral small joint swelling and post-immobility stiffness. She has gr eat difficulty finding comfortable shoes and describes the feeling of walking on pebbles. She is not aware of any diabetes or sensory loss. What are your thoughts at this stage?
OK. This lady gives a clear history of progressive, painful, bilateral small joint swelling and post-immobility stiffness. She has gr eat difficulty finding comfortable shoes and describes the feeling of walking on pebbles. She is not aware of any diabetes or sensory loss. What are your thoughts at this stage?
CANDIDATE
This appears to be an inflammatory arthropathy. Candidates may be asked about the revised diagnostic criteria of the American College of Rheumatology (ACR)/European League against Rheumatism (EULAR). This requires confirmed synovitis of one or more joints, with absence of alternative explanation for the synovitis, and achieving a score of 6 or greater out of 10 from domains including: Numbers and location of the involved joint(s). Serological abnormality. Elevated acute-phase response. Symptom duration. These criteria replaced the previous set from 1987, which were felt to lack sensitivity in early disease. The advent of increasingly effective treatment paradigms, incorporating the use of conventional and biologic DMARDs, has made it possible to prevent destructive disease in patients who are identified early in the course of disease rather than after progression to irreversible radiographic changes.
This appears to be an inflammatory arthropathy. Candidates may be asked about the revised diagnostic criteria of the American College of Rheumatology (ACR)/European League against Rheumatism (EULAR). This requires confirmed synovitis of one or more joints, with absence of alternative explanation for the synovitis, and achieving a score of 6 or greater out of 10 from domains including: Numbers and location of the involved joint(s). Serological abnormality. Elevated acute-phase response. Symptom duration. These criteria replaced the previous set from 1987, which were felt to lack sensitivity in early disease. The advent of increasingly effective treatment paradigms, incorporating the use of conventional and biologic DMARDs, has made it possible to prevent destructive disease in patients who are identified early in the course of disease rather than after progression to irreversible radiographic changes.
EXAMINER
Yes. Her feet are making her life pretiy miserable and she would like you, as an orthopaedic surgeon, to do something to make them better. Your examination finds marked active synovitis and plantar tenderness under the metatarsal heads as well as a minimally correctable hallux valgus. There is some hammering of the lesser toes with a cock-up deformity of the second toe. Sensation and perfusion appear good. What are you going to do?
Yes. Her feet are making her life pretiy miserable and she would like you, as an orthopaedic surgeon, to do something to make them better. Your examination finds marked active synovitis and plantar tenderness under the metatarsal heads as well as a minimally correctable hallux valgus. There is some hammering of the lesser toes with a cock-up deformity of the second toe. Sensation and perfusion appear good. What are you going to do?
CANDIDATE
First, I would want to know if she is known to a rheumatology service and has had any attempt at non-operativ e intervention.
First, I would want to know if she is known to a rheumatology service and has had any attempt at non-operativ e intervention.
EXAMINER
She has never seen a rheumatologist and has never sought help for her feet other than from you via her GP.
She has never seen a rheumatologist and has never sought help for her feet other than from you via her GP.
CANDIDATE
I would advise her that operations are helpful but that she should be formally assessed by a rheumatologist to confirm the diagnosis and achieve disease control using DMARDs. I would also advise review by the local podiatry and/or orthotics service as simple footwear modification may be all that is necessary to control her symptoms. The key buzz phrase to mention (if appropriate) is that patients with rheumatoid arthritis require a (contemporary) multidisciplinary approach to their management. This may also include involvement of vascular surgeons, occupational therapists and physiotherapists.
I would advise her that operations are helpful but that she should be formally assessed by a rheumatologist to confirm the diagnosis and achieve disease control using DMARDs. I would also advise review by the local podiatry and/or orthotics service as simple footwear modification may be all that is necessary to control her symptoms. The key buzz phrase to mention (if appropriate) is that patients with rheumatoid arthritis require a (contemporary) multidisciplinary approach to their management. This may also include involvement of vascular surgeons, occupational therapists and physiotherapists.
EXAMINER
I think that is appropriate advice at this stage. However, she returns to you a year later. Her synovitis is controlled by biological agents, but she has not found insoles and modified shoes helpful. How would you manage her at this point?
I think that is appropriate advice at this stage. However, she returns to you a year later. Her synovitis is controlled by biological agents, but she has not found insoles and modified shoes helpful. How would you manage her at this point?
CANDIDATE
I would suggest surgery in the form of forefoot reconstruction. This consists of excision of the lesser metatarsal heads, correction of lesser toe deformities and excision or fusion of the first metatarsophalangeal joint.
I would suggest surgery in the form of forefoot reconstruction. This consists of excision of the lesser metatarsal heads, correction of lesser toe deformities and excision or fusion of the first metatarsophalangeal joint.
EXAMINER
Why?
Why?
CANDIDATE
This is a proven intervention with good results.
This is a proven intervention with good results.
EXAMINER
How good?
How good?
CANDIDATE
More than 80% of patients report significant improvement.
More than 80% of patients report significant improvement.
EXAMINER
Would you fuse or excise the first metatarsophalangeal joint?
Would you fuse or excise the first metatarsophalangeal joint?
CANDIDATE
I would be guided by her age and functional demand in combination with the quality of the soft -tissue envelope of her foot. I would prefer to fuse the joint as I believe this aids maintenance of gait but, in a low-demand patient excision is associated with reduced complications and more rapid rehabilitation [ 11].
I would be guided by her age and functional demand in combination with the quality of the soft -tissue envelope of her foot. I would prefer to fuse the joint as I believe this aids maintenance of gait but, in a low-demand patient excision is associated with reduced complications and more rapid rehabilitation [ 11].
EXAMINER
How would you secure the arthrodesis?
How would you secure the arthrodesis?
source p. 283
CANDIDATE
I would use an oblique compression screw augmented by a dorsal locking plate as biomechanical and clinical studies have shown this to be the most reliable method.
I would use an oblique compression screw augmented by a dorsal locking plate as biomechanical and clinical studies have shown this to be the most reliable method.
EXAMINER
Would you always excise the lesser metatarsal heads in apa tien t of this age who now appears to have their disease under control?
Would you always excise the lesser metatarsal heads in apa tien t of this age who now appears to have their disease under control?
CANDIDATE
No. It would be appropriate to perform shortening osteotomies such as Weil osteotomies to preserve the metatarsal heads if they are not badly diseased.
No. It would be appropriate to perform shortening osteotomies such as Weil osteotomies to preserve the metatarsal heads if they are not badly diseased.
EXAMINER
Surely that just prolongs the procedure and increases the risk of complication?
Surely that just prolongs the procedure and increases the risk of complication?
CANDIDATE
Yes, but it is very difficult to salvage a rheumatoid foot without metatarsal heads if the disease progresses in subsequent years.
Yes, but it is very difficult to salvage a rheumatoid foot without metatarsal heads if the disease progresses in subsequent years.
EXAMINER
Tell me about the principles of surgery in rheumatoid arthritis.
Tell me about the principles of surgery in rheumatoid arthritis.
CANDIDATE
Surgery is indicated when symptoms and/or deformity are uncontrolled or geting worse. The overall objective is to produce a stable, plantigrade foot. Arthrodesis is the favoured procedure, but the risk of complications as ares ult of osteopenia, reduced vascularity and immunosuppression are to be borne in mind.
Surgery is indicated when symptoms and/or deformity are uncontrolled or geting worse. The overall objective is to produce a stable, plantigrade foot. Arthrodesis is the favoured procedure, but the risk of complications as ares ult of osteopenia, reduced vascularity and immunosuppression are to be borne in mind.
EXAMINER
What steps can a surgeon take to minimize the risk of complications?
What steps can a surgeon take to minimize the risk of complications?
CANDIDATE
A drug history is vital, as patients may well be on medications such as antiplatelet therapy, steroids or immune-modifying drugs which may have to be stopped or modified peri operatively. Biological agents should be stopped in the run up to surgery and not resumed untilt here is good evidence of postoperative healing. It should go without saying that meticulous handling of soft tissues is necessary. Incisions must be planned with care, both to maintain adequate skin bridges and to ensure satisfactory wound closure if significant deformities are being corrected.
A drug history is vital, as patients may well be on medications such as antiplatelet therapy, steroids or immune-modifying drugs which may have to be stopped or modified peri operatively. Biological agents should be stopped in the run up to surgery and not resumed untilt here is good evidence of postoperative healing. It should go without saying that meticulous handling of soft tissues is necessary. Incisions must be planned with care, both to maintain adequate skin bridges and to ensure satisfactory wound closure if significant deformities are being corrected.
EXAMINER
How long would you stop biological agents for?
How long would you stop biological agents for?
CANDIDATE
Two weeks pre- and postoperatively [12,13].
Two weeks pre- and postoperatively [12,13].
EXAMINER
What about other disease-modifying anft-rheuma tic drugs? Which other ones would you stop?
What about other disease-modifying anft-rheuma tic drugs? Which other ones would you stop?
CANDIDATE
Studies have shown that there is generally no need to stop drugs such as methotrexate or leflunomide. Peri operative management of RA medications [ 14]: Steroids: low dose (≤ 7.5 mg/day) or any dose if for < 3 weeks should be given as usual daily dose. Methotrexate: continue, as does not impair wound healing or increase peri operative infection risk. Other DMARDs: hold postoperatively until bowel and renal function are restored. TNF antagonists: stop one dose cycle preoperatively and restart when wound healed.
Studies have shown that there is generally no need to stop drugs such as methotrexate or leflunomide. Peri operative management of RA medications [ 14]: Steroids: low dose (≤ 7.5 mg/day) or any dose if for < 3 weeks should be given as usual daily dose. Methotrexate: continue, as does not impair wound healing or increase peri operative infection risk. Other DMARDs: hold postoperatively until bowel and renal function are restored. TNF antagonists: stop one dose cycle preoperatively and restart when wound healed.
source p. 284
EXAMINER
I would like to backtrack a bit. Would you alter your management if she also had signs and symptoms of hindfoot arthritis?
I would like to backtrack a bit. Would you alter your management if she also had signs and symptoms of hindfoot arthritis?
CANDIDATE
Generally, I would plan to address the most symptomatic area first. However, a less symptomatic and fixed hindfoot deformity should be corrected before proceeding to the forefoot. Flexible hindfoot deformity could be left un til more symptomatic.
Generally, I would plan to address the most symptomatic area first. However, a less symptomatic and fixed hindfoot deformity should be corrected before proceeding to the forefoot. Flexible hindfoot deformity could be left un til more symptomatic.
EXAMINER
Which hindfoot joints are most commonly affected in rheumatoid arthritis?
Which hindfoot joints are most commonly affected in rheumatoid arthritis?
CANDIDATE
The talo-navicular joint is most commonly affected, followed by the subtalar and calcaneocuboid joints.
The talo-navicular joint is most commonly affected, followed by the subtalar and calcaneocuboid joints.
EXAMINER
Can you outline the arguments for and against isolated talo-navicular fusion in RA?
Can you outline the arguments for and against isolated talo-navicular fusion in RA?
CANDIDATE
Isolated talo-navicular fusion is a lesser procedure than triple fusion for both patient and surgeon and effectively eliminates hindfoot motion Historically, a non-union rate of up to 37% has been reported, although more recent studies suggest the non-union rate using contemporary fixation is much less. A triple arthrodesis is more reliable and allows greater deformity correction.
Isolated talo-navicular fusion is a lesser procedure than triple fusion for both patient and surgeon and effectively eliminates hindfoot motion Historically, a non-union rate of up to 37% has been reported, although more recent studies suggest the non-union rate using contemporary fixation is much less. A triple arthrodesis is more reliable and allows greater deformity correction.
EXAMINER
Thankyou.
Thankyou.
source p. 285

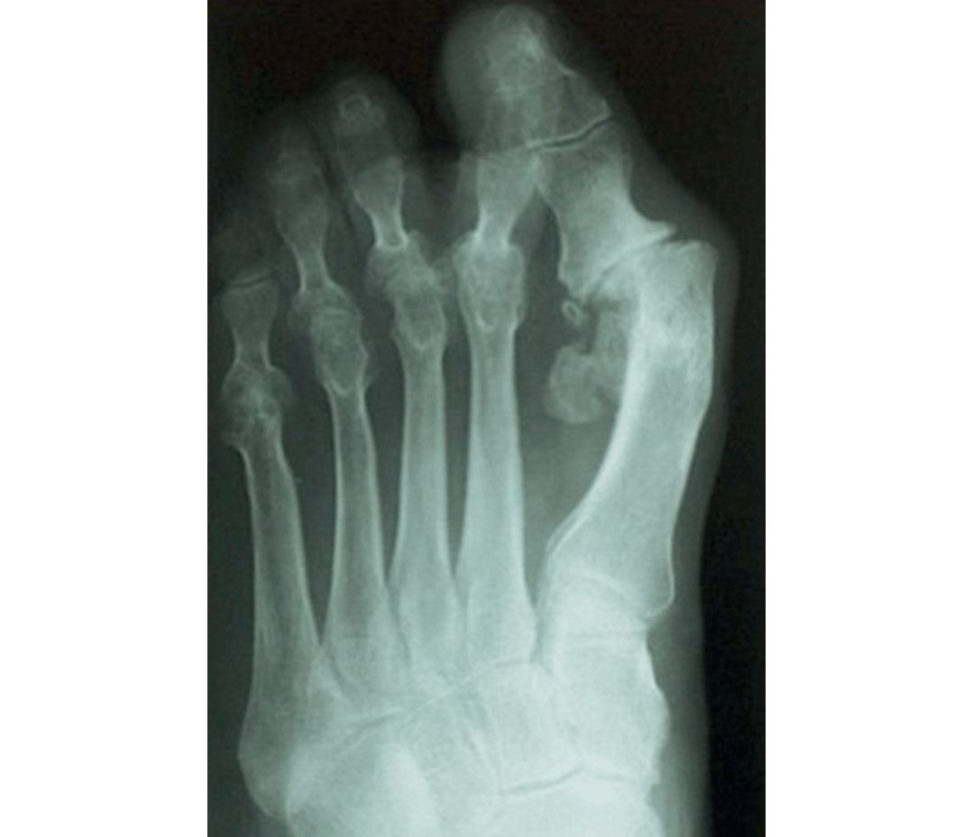

Figure 5.3 AP radiograph of rheumatoid forefoot.
source p. 286
Structured oral examination question 4#
source p. 287
Cavus foot
EXAMINER
These are photographs of the left foot of a 20-year old man (Figure 5.4). Describe them.
These are photographs of the left foot of a 20-year old man (Figure 5.4). Describe them.
CANDIDATE
These clinical photographs show the anterior, medial and posterior views of a left foot with a cavus deformity. The hindfoot is in varus and there is a high medial arch. There doesn’t appear to be any significant clawing or abnormality of the toes. There is some shortening of the medial column of the foot and I can’t see any obvious callosities beneath the metatarsal heads.
These clinical photographs show the anterior, medial and posterior views of a left foot with a cavus deformity. The hindfoot is in varus and there is a high medial arch. There doesn’t appear to be any significant clawing or abnormality of the toes. There is some shortening of the medial column of the foot and I can’t see any obvious callosities beneath the metatarsal heads.
EXAMINER
What is the likely underlying cause?
What is the likely underlying cause?
CANDIDATE
The causes of a cavus foot may be broken down into congenital or acquired. The common causes of congenital deformities are idiopathic, a sequelae of clubfoot or due to arthrogryposis. The acquired deformities may be due to trauma (compartment syndrome, crush injury) or neuromuscular conditions. The neuromuscular causes may be grouped into central nervous system disease such as cerebral palsy or Friedrich’s ataxia, spinal cord lesions such as spina bifid aor spinal dysraphism, peripheral nervous system lesions such as an HSMN or muscular causes such as muscular dystrophy. A cavus foot develops a high arch as the result of imbalance in the musculature of the foot. In the cavovarus foot the heel is in varus and the forefoot in equinus with pronation of the first and sometimes second ray. It is important to distinguish between a cavovarus foot and a calcaneocavus foot. In the calcaneocavus foot the calf muscles are weak and the heel is in calcaneus and often valgus.
The causes of a cavus foot may be broken down into congenital or acquired. The common causes of congenital deformities are idiopathic, a sequelae of clubfoot or due to arthrogryposis. The acquired deformities may be due to trauma (compartment syndrome, crush injury) or neuromuscular conditions. The neuromuscular causes may be grouped into central nervous system disease such as cerebral palsy or Friedrich’s ataxia, spinal cord lesions such as spina bifid aor spinal dysraphism, peripheral nervous system lesions such as an HSMN or muscular causes such as muscular dystrophy. A cavus foot develops a high arch as the result of imbalance in the musculature of the foot. In the cavovarus foot the heel is in varus and the forefoot in equinus with pronation of the first and sometimes second ray. It is important to distinguish between a cavovarus foot and a calcaneocavus foot. In the calcaneocavus foot the calf muscles are weak and the heel is in calcaneus and often valgus.
EXAMINER
HSMN?
HSMN?
CANDIDATE
Hereditary sensorimotor neuropathies. These are a group of inherited neurological conditions. Char cot–Marie–Tooth is the most common of these conditions.
Hereditary sensorimotor neuropathies. These are a group of inherited neurological conditions. Char cot–Marie–Tooth is the most common of these conditions.
EXAMINER
Can you go into more detail? How do these conditions lead to a cavus foot deformity?
Can you go into more detail? How do these conditions lead to a cavus foot deformity?
CANDIDATE
The hereditary sensorimotor neuropathies are a group of related conditions that may lead to cavus foot deformity due to muscle imbalance. The conditions are diagnosed by the pattern of deformity and a positive family history. The most commonly recognized is Charcot–Marie–Tooth (CMT) disease, which affects approximately 1 in 2500 people. These patients commonly have weakness of the intrinsic muscles, tibialis anterior and peroneus brevis. Type I with an autosomal- dominant inheritance pattern tends to present in the second decade and patients have peroneal muscle weakness, abnormal (slow) nerve conduction studies, absent reflexes and hand involvement. Type II presents in the third or fourth decade. Reflexes and nerve conduction are normal; however, the foot deformity may be more pronounced. Genetic analysi sis able to diagnose and group these conditions more accurately and at least 17 types of CM Thave been described.
The hereditary sensorimotor neuropathies are a group of related conditions that may lead to cavus foot deformity due to muscle imbalance. The conditions are diagnosed by the pattern of deformity and a positive family history. The most commonly recognized is Charcot–Marie–Tooth (CMT) disease, which affects approximately 1 in 2500 people. These patients commonly have weakness of the intrinsic muscles, tibialis anterior and peroneus brevis. Type I with an autosomal- dominant inheritance pattern tends to present in the second decade and patients have peroneal muscle weakness, abnormal (slow) nerve conduction studies, absent reflexes and hand involvement. Type II presents in the third or fourth decade. Reflexes and nerve conduction are normal; however, the foot deformity may be more pronounced. Genetic analysi sis able to diagnose and group these conditions more accurately and at least 17 types of CM Thave been described.
EXAMINER
What causes the deformity in CMT?
What causes the deformity in CMT?
source p. 288
CANDIDATE
In CMT the tibialis anterior and peroneus brevis muscles are weak and the strength of the antagonistic muscles tibialis posterior and peroneus longus causes the deformity. In detail, the peroneus longus contracts stronger than the weak tibialis anterior causing plantar flexion of the first ray. The posterior tibialis contracts harder than the weak peroneus brevis causing forefoot adduction. In addition, the long extensors to the toes are recruited to assist ankle dorsiflexion, causing claw toe deformities.
In CMT the tibialis anterior and peroneus brevis muscles are weak and the strength of the antagonistic muscles tibialis posterior and peroneus longus causes the deformity. In detail, the peroneus longus contracts stronger than the weak tibialis anterior causing plantar flexion of the first ray. The posterior tibialis contracts harder than the weak peroneus brevis causing forefoot adduction. In addition, the long extensors to the toes are recruited to assist ankle dorsiflexion, causing claw toe deformities.
EXAMINER
What symptoms is this patient likely to complain about?
What symptoms is this patient likely to complain about?
CANDIDATE
Common complaints include pain to the forefoot under the metatarsal heads, lateral aspect of the foot, instability of the ankle with a history of frequent ankle sprains and deformity of the foot with problems fiting footwear or alteration of g ait.
Common complaints include pain to the forefoot under the metatarsal heads, lateral aspect of the foot, instability of the ankle with a history of frequent ankle sprains and deformity of the foot with problems fiting footwear or alteration of g ait.
EXAMINER
What are the main findings you would look for in the examination of a cavus foot?
What are the main findings you would look for in the examination of a cavus foot?
CANDIDATE
On general inspection I would be looking to see if the deformity was bilateral and whether there were stigmata of a generalized condition such as intrinsic muscle wasting involving the hands. With the patient standing I would look to see if the heel was in varus, neutral or valgus alignment, assess the height of the longitudinal arch by inspection and also look for any toe deformities. While the patient was standing I would also look at the spine for any stigmata of an underlying abnormality, such as a hairy patch or scoliosis. With the patient siting I would inspect the soles of the feet for callosities or areas of ulceration and look for any clawing of the toes. I would undertake a neurological examination of the lo wer limbs to assess sensation, deep tendon reflexes and power of the major muscle groups, particularly the tibialis anterior (ankle dorsiflexion), tibialis posterior (inversion), peroneal longus (resisted plantar flexion) and peroneus brevis (eversion). I would also like to see the patient walk to see if they had a broad-based ataxic gait (Friedrich’s ataxia) or drop-foot gait.
On general inspection I would be looking to see if the deformity was bilateral and whether there were stigmata of a generalized condition such as intrinsic muscle wasting involving the hands. With the patient standing I would look to see if the heel was in varus, neutral or valgus alignment, assess the height of the longitudinal arch by inspection and also look for any toe deformities. While the patient was standing I would also look at the spine for any stigmata of an underlying abnormality, such as a hairy patch or scoliosis. With the patient siting I would inspect the soles of the feet for callosities or areas of ulceration and look for any clawing of the toes. I would undertake a neurological examination of the lo wer limbs to assess sensation, deep tendon reflexes and power of the major muscle groups, particularly the tibialis anterior (ankle dorsiflexion), tibialis posterior (inversion), peroneal longus (resisted plantar flexion) and peroneus brevis (eversion). I would also like to see the patient walk to see if they had a broad-based ataxic gait (Friedrich’s ataxia) or drop-foot gait.
EXAMINER
What is shown in these diagrams (Figure 5.5)?
What is shown in these diagrams (Figure 5.5)?
CANDIDATE
These diagrams show the Coleman block test.
These diagrams show the Coleman block test.
EXAMINER
And what is that?
And what is that?
CANDIDATE
The Coleman block test assesses flexibility of the hindfoot deformity by eliminating the deforming drive of the forefoot. In a cavus foot the first ray is plantar flexed so to place the foot on the ground the hindfoot has to move into varus. In the Coleman block test the foot is positioned so that the lateral border of the foot and the heel are placed on a block and the medial forefoot is allowed to hang off the edge of the block. If the heel assumes neutral to 5° valgus alignment when viewed from behind the hindfoot deformity is considered flexible and driven by the forefoot [15].
The Coleman block test assesses flexibility of the hindfoot deformity by eliminating the deforming drive of the forefoot. In a cavus foot the first ray is plantar flexed so to place the foot on the ground the hindfoot has to move into varus. In the Coleman block test the foot is positioned so that the lateral border of the foot and the heel are placed on a block and the medial forefoot is allowed to hang off the edge of the block. If the heel assumes neutral to 5° valgus alignment when viewed from behind the hindfoot deformity is considered flexible and driven by the forefoot [15].
EXAMINER
What investigations would you use to evaluate this foot further?
What investigations would you use to evaluate this foot further?
source p. 289
CANDIDATE
In terms of evaluating the foot itself I would first obtain weight-bearing radiographs of the foot and ankle. An MRI scan of the spine is required if the patient has any signs or symptoms suggesting an underlying spinal cause.
In terms of evaluating the foot itself I would first obtain weight-bearing radiographs of the foot and ankle. An MRI scan of the spine is required if the patient has any signs or symptoms suggesting an underlying spinal cause.
EXAMINER
What information does the lateral X-ray provide?
What information does the lateral X-ray provide?
CANDIDATE
The magnitude of the cavus deformity can be quantified using Mear y’s angle, the angle between the long axis of the talus and the first metatarsal shaft. Normally this lies between ±5°. Hibb’s angle is the angle between the long axis of the first metatarsal shaft and the long a xis of the calcaneum. This angle is normally 150° but decreases as the cavus worsens. The calcaneal pitch angle, the angle between the floor and the undersurface of the calcaneum, should be less than 30° but may be elevated in a cavus foot. The radiographs will also show any evidence of degenerative changes to the joints.
The magnitude of the cavus deformity can be quantified using Mear y’s angle, the angle between the long axis of the talus and the first metatarsal shaft. Normally this lies between ±5°. Hibb’s angle is the angle between the long axis of the first metatarsal shaft and the long a xis of the calcaneum. This angle is normally 150° but decreases as the cavus worsens. The calcaneal pitch angle, the angle between the floor and the undersurface of the calcaneum, should be less than 30° but may be elevated in a cavus foot. The radiographs will also show any evidence of degenerative changes to the joints.
EXAMINER
What are the principles of managing this condition?
What are the principles of managing this condition?
CANDIDATE
Firstly, it is important to identify and if necessary address the underlying cause of the cavus. The patient should be assessed for neuromuscular causes and referred for a neurological opinion if appropriate. The patient symptoms need to be understood as well as the likelihood of progression. Management can be non-operativ e with the use of orthotics to try and offload pressure areas, prevent rubbing of the toes and improve stability. Surgical treatment needs to be tailored to the individual patient underlying pathology, risk of progression, level of deformity and muscular imbalance. No single surgical procedure is appropriate for all patients and frequently, multiple procedures are required. Correction of deformity without addressing muscular imbalance will not be successful. Surgical procedures are broadly categorized into soft -tissue and bony procedures. Tendon transfers and osteotomies can provide correction of the deformity without the need for arthrodesis. Arthrodesis is usually required for severe arthritic joint disease or if complete muscle paralysis is present.
Firstly, it is important to identify and if necessary address the underlying cause of the cavus. The patient should be assessed for neuromuscular causes and referred for a neurological opinion if appropriate. The patient symptoms need to be understood as well as the likelihood of progression. Management can be non-operativ e with the use of orthotics to try and offload pressure areas, prevent rubbing of the toes and improve stability. Surgical treatment needs to be tailored to the individual patient underlying pathology, risk of progression, level of deformity and muscular imbalance. No single surgical procedure is appropriate for all patients and frequently, multiple procedures are required. Correction of deformity without addressing muscular imbalance will not be successful. Surgical procedures are broadly categorized into soft -tissue and bony procedures. Tendon transfers and osteotomies can provide correction of the deformity without the need for arthrodesis. Arthrodesis is usually required for severe arthritic joint disease or if complete muscle paralysis is present.
EXAMINER
Thankyou.
Thankyou.
source p. 290
Figure 5.4 Cavus foot deformity.

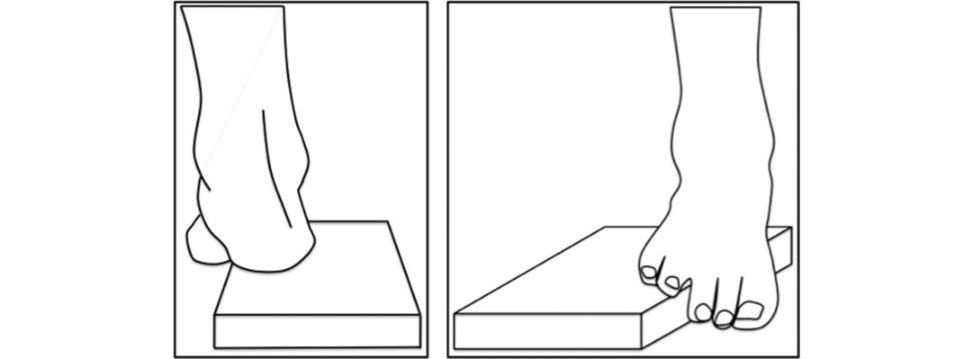

Figure 5.5 Coleman block test.

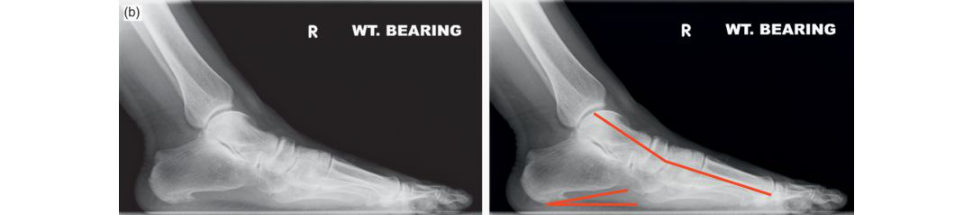

Figure 5.6a,b AP and lateral radiographs of a cavus foot.
source p. 291
Surgery#
source p. 292
1. Soft -tissue releases
Plantar fascia release
In young children, surgical release of the plantar fascia and short toe flexors may be helpful. This is on the assumption that the deforming force of a contracted plantar fascia leads to a narrow arch base, plantar flexed first metatarsal and heel varus due to the windlass effect.
Gastrocnemius/Achilles lengthening
Occasionally required for contracture, but it is important to make sure a true equinus is present onstanding lateral radiographs.
source p. 293
2. Tendon transfers
The most common tendon transfer incavo varus foot is peroneus longus to brevis transfer to improve power of eversion. It helps stabilize the ankle.
source p. 294
3. Osteotomies
Patients with hindfoot involvement usually require a calcaneal osteotomy to correct the deformity. The osteotomy can include a closing wedge, aver tical displacement, or a combination (triplanar osteotomy).
source p. 295
4. Fusion
For a rigid painful foot in a young adult a triple arthrodesis can be used as a salvage stabilizing procedure that relieves pain but sacrifices joint motion.
Complications include development of ankle arthritis, pseudo-arthrosis, residue deformity, midfoot arthritis overcorrection and AVN talus.
source p. 296
Structured oral examination question 5#
source p. 297
Acquired adult flafooot
EXAMINER
I would like you to look at this clinical photograph and tell me what you see (see Figure 5.7a).
I would like you to look at this clinical photograph and tell me what you see (see Figure 5.7a).
CANDIDATE
This shows the posterior view of feet in a weight-bearing stance. There is marked heel valgus, loss of the medial longitudinal arch and too many toes are visible [16].
This shows the posterior view of feet in a weight-bearing stance. There is marked heel valgus, loss of the medial longitudinal arch and too many toes are visible [16].
EXAMINER
What term is used to describe this situation?
What term is used to describe this situation?
CANDIDATE
Pes planus or flafooot.
Pes planus or flafooot.
EXAMINER
Yes. In adults, what are the causes of this condition?
Yes. In adults, what are the causes of this condition?
CANDIDATE
The commonest cause is tibialis posterior dysfunction. Other causes include inflammatory arthritis, Char cot arthropathy, midfoot osteoarthritis and trauma (malunited calcaneum, missed Lisfranc injury, cuboid fracture).
The commonest cause is tibialis posterior dysfunction. Other causes include inflammatory arthritis, Char cot arthropathy, midfoot osteoarthritis and trauma (malunited calcaneum, missed Lisfranc injury, cuboid fracture).
EXAMINER
OK. How common is adult flafooot?
OK. How common is adult flafooot?
CANDIDATE
It is commoner in females and the incidence increases with age.
It is commoner in females and the incidence increases with age.
EXAMINER
Okay. Let’s stick with tibialis posterior dysfunction. Describe a typical patient.
Okay. Let’s stick with tibialis posterior dysfunction. Describe a typical patient.
CANDIDATE
The classic patient would be a female aged between 45 and 65 years with pain along the course of the tibialis posterior tendon exacerbated by activity . Standing on tiptoe may be painful and difficult. There is likely to be later development of increasing planovalgus deformity which may be associated with lateral impingement pain as the distal fibula contacts the calcaneum.
The classic patient would be a female aged between 45 and 65 years with pain along the course of the tibialis posterior tendon exacerbated by activity . Standing on tiptoe may be painful and difficult. There is likely to be later development of increasing planovalgus deformity which may be associated with lateral impingement pain as the distal fibula contacts the calcaneum.
EXAMINER
What are the key examination points you would look for?
What are the key examination points you would look for?
CANDIDATE
The most useful testis the ability to perform a single heel raise. I would also assess for hindfoot flexibility. These would guide classification and treatment.
The most useful testis the ability to perform a single heel raise. I would also assess for hindfoot flexibility. These would guide classification and treatment.
EXAMINER
What are the origins and insertions of the tibialis posterior tendon?
What are the origins and insertions of the tibialis posterior tendon?
CANDIDATE
It arises from the posterior tibia interosseous membrane and the fibula in the proximal third of the leg and runs in the deep posterior compartment of the leg. The tendon then passes in a groove directly behind the medial malleolus, where it is tightly bound by the flexor retinaculum. The main insertion is on to the navicular tuberosity but equally importantly it also fans out under the plantar aspect of the foot with extensive insertions to the second through fourth metatarsals, all three cuneiforms, the sustentaculum tali and the cuboid.
It arises from the posterior tibia interosseous membrane and the fibula in the proximal third of the leg and runs in the deep posterior compartment of the leg. The tendon then passes in a groove directly behind the medial malleolus, where it is tightly bound by the flexor retinaculum. The main insertion is on to the navicular tuberosity but equally importantly it also fans out under the plantar aspect of the foot with extensive insertions to the second through fourth metatarsals, all three cuneiforms, the sustentaculum tali and the cuboid.
EXAMINER
How do you assess the strength of the tibialis posterior tendon?
How do you assess the strength of the tibialis posterior tendon?
CANDIDATE
The strength of the tendon is evaluated by asking the patient to attempt to invert the foot from a plantar flexed and everted position. This position isolates the posterior tibial tendon, neutralizing synergistic inversion from the anterior tibialis muscle.
The strength of the tendon is evaluated by asking the patient to attempt to invert the foot from a plantar flexed and everted position. This position isolates the posterior tibial tendon, neutralizing synergistic inversion from the anterior tibialis muscle.
source p. 298
EXAMINER
How does tibialis posterior dysfunction cause a flatfoot?
How does tibialis posterior dysfunction cause a flatfoot?
CANDIDATE
The function of the posterior tibial tendon is threefold: it acts as an invertor of the subtalar joint, plantar-flexor of the ankle and an adductor of the forefoot. The combination of these actions serves to elevate the medial arch. The inversion pull of tibialis posterior on the subtalar joint locks the transverse tarsal joint, providing a rigid lever arm with which to push off following the heel-raise phase of gait. With a diseased or poorly functioning tibialis posterior tendon, the unopposed action of the peroneus brevis pulls the forefoot into abduction and the sub talar joint into valgus. It is inactive during the swing phase. After heel contact the tibialis posterior contracts eccentrically to prevent excess hindfoot eversion. The Achilles tendon is a powerful secondary inverter of the heel. It relies on the initial inversion power of the tibialis posterior to shift its mechanical axis more medially, thereby exerting a further inversion force. As the function of the tibialis posterior fails, the Achilles tendon remains close to the subtalar axis, thereby reducing its function as both an inverter and a stabilizer of the subtalar joint. As the imbalance between lateral and medial soft tissues progresses, the hindfoot valgus and forefoot abduction increase. The static stabilizers on the medial side, in particular the spring ligament and the deltoid ligament, attenuate further.
The function of the posterior tibial tendon is threefold: it acts as an invertor of the subtalar joint, plantar-flexor of the ankle and an adductor of the forefoot. The combination of these actions serves to elevate the medial arch. The inversion pull of tibialis posterior on the subtalar joint locks the transverse tarsal joint, providing a rigid lever arm with which to push off following the heel-raise phase of gait. With a diseased or poorly functioning tibialis posterior tendon, the unopposed action of the peroneus brevis pulls the forefoot into abduction and the sub talar joint into valgus. It is inactive during the swing phase. After heel contact the tibialis posterior contracts eccentrically to prevent excess hindfoot eversion. The Achilles tendon is a powerful secondary inverter of the heel. It relies on the initial inversion power of the tibialis posterior to shift its mechanical axis more medially, thereby exerting a further inversion force. As the function of the tibialis posterior fails, the Achilles tendon remains close to the subtalar axis, thereby reducing its function as both an inverter and a stabilizer of the subtalar joint. As the imbalance between lateral and medial soft tissues progresses, the hindfoot valgus and forefoot abduction increase. The static stabilizers on the medial side, in particular the spring ligament and the deltoid ligament, attenuate further.
EXAMINER
As you have mentioned classification of tibialis posterior dysfunction could you tell me any more about this?
As you have mentioned classification of tibialis posterior dysfunction could you tell me any more about this?
CANDIDATE
Yes. Johnson and Strom proposed a three-stage classification in 1989. My erson later added a fourth stage [17]. In stage 1 disease, there is no deformity but pain from the tendon. A single heel raise is usually possible but painful. The tendon is inflamed, tender and swollen. In stage 2 disease, there is a flexible planovalgus deformity and weakness of single heel raise. The tendon degenerates and lengthens with the foot changing shape going into valgus. In stage 3 disease, the valgus hindfoot deformity has become fixed and reconstruction is not possible. With stage 4, there is additional tilting of the talus in the ankle mortise leading to significant ankle arthritis secondary to valgus strain.
Yes. Johnson and Strom proposed a three-stage classification in 1989. My erson later added a fourth stage [17]. In stage 1 disease, there is no deformity but pain from the tendon. A single heel raise is usually possible but painful. The tendon is inflamed, tender and swollen. In stage 2 disease, there is a flexible planovalgus deformity and weakness of single heel raise. The tendon degenerates and lengthens with the foot changing shape going into valgus. In stage 3 disease, the valgus hindfoot deformity has become fixed and reconstruction is not possible. With stage 4, there is additional tilting of the talus in the ankle mortise leading to significant ankle arthritis secondary to valgus strain.
EXAMINER
OK. How would you investigate this patient?
OK. How would you investigate this patient?
CANDIDATE
Weight-bearing AP and lateral radiographs of both the foot and ankle would help to assess structural change and exclude other causes of flafooot. They could also show associated degenerate change. The arch index could also be measured.
Weight-bearing AP and lateral radiographs of both the foot and ankle would help to assess structural change and exclude other causes of flafooot. They could also show associated degenerate change. The arch index could also be measured.
EXAMINER
Would the arch index influence your management?
Would the arch index influence your management?
source p. 299
CANDIDATE
No. It is mainly used as a research tool.
No. It is mainly used as a research tool.
EXAMINER
Is there a place for MRI?
Is there a place for MRI?
CANDIDATE
MRI is not routinely needed for the diagnosis of flatfeet. It is useful in detecting early changes within the tendon if there is any diagnostic doubt. MRI is valuable if surgical management is being planned. It is also useful for assessing the medial structures such as the deltoid and spring ligaments and also the peroneal tendon [18]. Figure 5.7d–f. MRI tibialis posterior tendinopathy with fluid around tendon. Some increased signal within the tendon substance.
MRI is not routinely needed for the diagnosis of flatfeet. It is useful in detecting early changes within the tendon if there is any diagnostic doubt. MRI is valuable if surgical management is being planned. It is also useful for assessing the medial structures such as the deltoid and spring ligaments and also the peroneal tendon [18]. Figure 5.7d–f. MRI tibialis posterior tendinopathy with fluid around tendon. Some increased signal within the tendon substance.
EXAMINER
Tell me what the treatment options are.
Tell me what the treatment options are.
CANDIDATE
For stage 1, I would offer debridement of the tendon followed by 6–8 weeks of casting or splintage, then provision of a definitive arch support orthosis [19]. For stage 2 disease I would offer either a lateral column lengthening or a medializing calcaneal osteotomy in conjunction with a FDL transfer to augmentor replace the tibialis posterior [20]. The Achilles tendon occasionally needs to be percutaneously released if it is tightened and is preventing full correction. In stage 3 disease, triple arthrodesis is recommended [21]. For stage 4 disease, the treatment depends upon the flexibility of the ankle deformity. If it is flexible, a triple arthrodesis combined with ankle bracing or deltoid ligament reconstruction may be adequate, otherwise a triple arthrodesis combined or followed by ankle arthrodesis would be indicated.
For stage 1, I would offer debridement of the tendon followed by 6–8 weeks of casting or splintage, then provision of a definitive arch support orthosis [19]. For stage 2 disease I would offer either a lateral column lengthening or a medializing calcaneal osteotomy in conjunction with a FDL transfer to augmentor replace the tibialis posterior [20]. The Achilles tendon occasionally needs to be percutaneously released if it is tightened and is preventing full correction. In stage 3 disease, triple arthrodesis is recommended [21]. For stage 4 disease, the treatment depends upon the flexibility of the ankle deformity. If it is flexible, a triple arthrodesis combined with ankle bracing or deltoid ligament reconstruction may be adequate, otherwise a triple arthrodesis combined or followed by ankle arthrodesis would be indicated.
EXAMINER
You seem very clear about surgical options Whatabout non-operativ e treatment?
You seem very clear about surgical options Whatabout non-operativ e treatment?
CANDIDATE
I should have mentioned that. It is appropriate to offer analgesia and orthotic treatment to most patients initially . An orthotic providing medial arch support with a heel cup to control heel valgus would be appropriate. There are two aims of orthotic treatment. First, this may offer adequate symptom relief. Second, it may control progressive heel valgus and flattening of the medial archIt’s not great viva tactics to jump straight in to discussing surgical options for a condition unless it is very clear that’s what the examiners want to discuss.
I should have mentioned that. It is appropriate to offer analgesia and orthotic treatment to most patients initially . An orthotic providing medial arch support with a heel cup to control heel valgus would be appropriate. There are two aims of orthotic treatment. First, this may offer adequate symptom relief. Second, it may control progressive heel valgus and flattening of the medial archIt’s not great viva tactics to jump straight in to discussing surgical options for a condition unless it is very clear that’s what the examiners want to discuss.
EXAMINER
You spoke about an FDL transfer. Tell me about this procedure.
You spoke about an FDL transfer. Tell me about this procedure.
CANDIDATE
After obtaining informed consent I would make an incision in the line of the posterior tibial tendon, starting posterior to the medial malleolus. I would debride or resect the tendon according to the clinical appearances. The flexor digitorum longus sheath lies directly posterior to the tibialis posterior tendon and would be opened longitudinally as far distally as possible before the FDL tendon is divided. The free FDL tendon is then passed through a tunnel drilled in the navicular and sutured back to itself under tension.
After obtaining informed consent I would make an incision in the line of the posterior tibial tendon, starting posterior to the medial malleolus. I would debride or resect the tendon according to the clinical appearances. The flexor digitorum longus sheath lies directly posterior to the tibialis posterior tendon and would be opened longitudinally as far distally as possible before the FDL tendon is divided. The free FDL tendon is then passed through a tunnel drilled in the navicular and sutured back to itself under tension.
EXAMINER
In what direction would you pass FDL through the navicular?
In what direction would you pass FDL through the navicular?
source p. 300
CANDIDATE
From plantar to dorsal.
From plantar to dorsal.
EXAMINER
What is the aim of a medializing calcaneal osteotomy?
What is the aim of a medializing calcaneal osteotomy?
CANDIDATE
The calcaneal osteotomy directly reduces the heel valgus and brings the weight-bearing axis closer to the long axis of the leg. In addition, it displaces the Achilles tendon insertion medially to prevent it acting as an ever ter of the hindfoot.
The calcaneal osteotomy directly reduces the heel valgus and brings the weight-bearing axis closer to the long axis of the leg. In addition, it displaces the Achilles tendon insertion medially to prevent it acting as an ever ter of the hindfoot.
EXAMINER
When obtaining consent, what would you advise about flexion of the toes after harvesting the flexor digitorum longus?
When obtaining consent, what would you advise about flexion of the toes after harvesting the flexor digitorum longus?
CANDIDATE
I would expect flexion of the lesser toes to be maintained by the flexor hallucis longus via the knot of Henry.
I would expect flexion of the lesser toes to be maintained by the flexor hallucis longus via the knot of Henry.
EXAMINER
Can you tell me alit ile more about the knot of Henry?
Can you tell me alit ile more about the knot of Henry?
CANDIDATE
The flexor digitorum longus crosses the flexor hallucis longus at the knot of Henry. There are a number of fibrous interconnections between the two tendons that afford a degree of cooperation in movement. This means that flexion of the digits can continue after harvest of either FDL or FHL.
The flexor digitorum longus crosses the flexor hallucis longus at the knot of Henry. There are a number of fibrous interconnections between the two tendons that afford a degree of cooperation in movement. This means that flexion of the digits can continue after harvest of either FDL or FHL.
EXAMINER
What would you tell the patient about the success rate of the operation?
What would you tell the patient about the success rate of the operation?
CANDIDATE
Chad wicket al. [22] reported that FDL transfer with medializing calcaneum osteotomy provided long-term pain relief and improved function in 85% of patients after a mean follow-up of 15.2 years. Substantial improvements were noted in the American Orthopaedic Foot & Ankle Society (AOFAS), visual analogue scale (VAS), and SF-36 scores. This is scoring a 7. Appropriate up-to-date knowledge of the literature to justify a management decision.
Chad wicket al. [22] reported that FDL transfer with medializing calcaneum osteotomy provided long-term pain relief and improved function in 85% of patients after a mean follow-up of 15.2 years. Substantial improvements were noted in the American Orthopaedic Foot & Ankle Society (AOFAS), visual analogue scale (VAS), and SF-36 scores. This is scoring a 7. Appropriate up-to-date knowledge of the literature to justify a management decision.
EXAMINER
Is there a place for any additional procedures such as first ray fusions or lateral column lengthening?
Is there a place for any additional procedures such as first ray fusions or lateral column lengthening?
CANDIDATE
One concern with stage 2 adult-acquired flafooot deformity is that there is a large variability in disease severity within the classification group including hindfoot valgus, medial column stability, forefoot abduction and supination. The treatment remains controversial with numerous soft -tissue and bony procedures being described. How extensive a procedure is required remains unknown.
One concern with stage 2 adult-acquired flafooot deformity is that there is a large variability in disease severity within the classification group including hindfoot valgus, medial column stability, forefoot abduction and supination. The treatment remains controversial with numerous soft -tissue and bony procedures being described. How extensive a procedure is required remains unknown.
EXAMINER
What approach would you use for a triple arthrodesis to correct significant, fixed valgus heel deformity?
What approach would you use for a triple arthrodesis to correct significant, fixed valgus heel deformity?
CANDIDATE
This is a potentially difficult situation. The joint preparation is s traighfoorward if a lateral utility approach or similar is combined with a dorsal incision over the talonavicular joint. If a significant deformity is being addressed there can be difficulty inclosing the lateral incision once the deformity is corrected. There are advocates of triple arthrodesis via a single medial approach, but this is difficult and not always possible.
This is a potentially difficult situation. The joint preparation is s traighfoorward if a lateral utility approach or similar is combined with a dorsal incision over the talonavicular joint. If a significant deformity is being addressed there can be difficulty inclosing the lateral incision once the deformity is corrected. There are advocates of triple arthrodesis via a single medial approach, but this is difficult and not always possible.
EXAMINER
One final question. An y new developments?
One final question. An y new developments?
source p. 301
CANDIDATE
PRP injections have recently been used in the early stages of posterior tendon dysfunction. We are awaiting randomized controlled data.
PRP injections have recently been used in the early stages of posterior tendon dysfunction. We are awaiting randomized controlled data.
EXAMINER
Thankyou.
Thankyou.
Figure 5.7a Acquired adult flafooot. Loss of medial arch. Valgus heel, ‘too many toes sign’.
Figure 5.7b Midfoot sagift al radiograph sMeary’s angle negative (> 10°). Reduced calcaneal pitch angle (10° approx., normal 20–30°).
source p. 302
Figure 5.7c Anteroposterior (AP) radiographs of midfoot abduction. T alo to first metatarsal an angle > 10°.
source p. 303

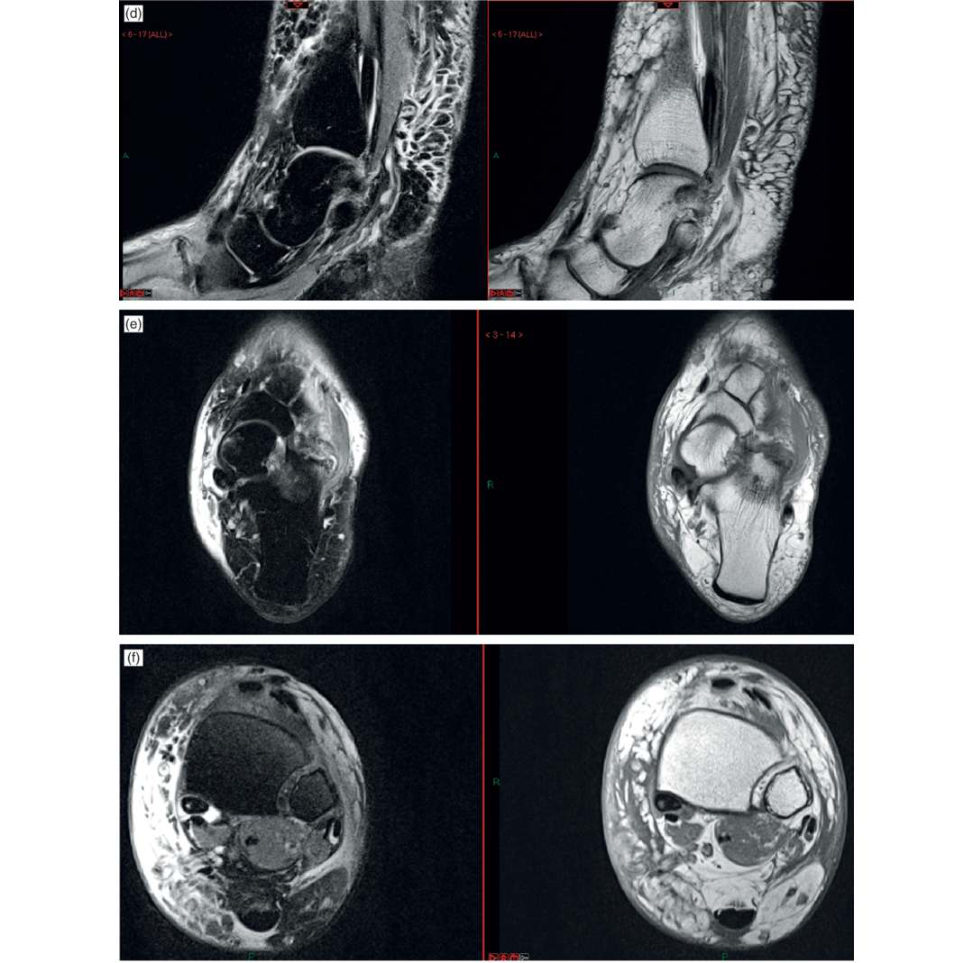

Figure 5.7d–f MRI tibialis posterior tendinopathy with fluid around tendon. Some increased signal within the tendon substance.
source p. 304
Structured oral examination question 6#
source p. 305
Hallux valgus
EXAMINER
Please have a look at these clinical photographs and tell me what you see (see Figures 5.8 and 5.9).
Please have a look at these clinical photographs and tell me what you see (see Figures 5.8 and 5.9).
CANDIDATE
These show a frontal view of a pair of feet and an oblique view of the left foot. There are bilateral hallux valgus deformities with the hallux o ver-riding the right second toe. I can only count three lesser toes for the left foot and there is a scar in the web space lateral to the hallux and a medial longitudinal scar over the metatarsophalangeal joint. The toenails appear friable and there is some excoriation around the lesser toes of the right foot.
These show a frontal view of a pair of feet and an oblique view of the left foot. There are bilateral hallux valgus deformities with the hallux o ver-riding the right second toe. I can only count three lesser toes for the left foot and there is a scar in the web space lateral to the hallux and a medial longitudinal scar over the metatarsophalangeal joint. The toenails appear friable and there is some excoriation around the lesser toes of the right foot.
EXAMINER
OK. This 65-year-old lady had her left second toe removed some years ago for a presentation similar to that which she now has on the right. Her left-sided symptoms have also recurred. How would you assess her further?
OK. This 65-year-old lady had her left second toe removed some years ago for a presentation similar to that which she now has on the right. Her left-sided symptoms have also recurred. How would you assess her further?
CANDIDATE
I would obtain a detailed history, looking to clarify the main source of her symptoms. Can I ask what symptoms she has?
I would obtain a detailed history, looking to clarify the main source of her symptoms. Can I ask what symptoms she has?
EXAMINER
What do you think they are likely to be?
What do you think they are likely to be?
CANDIDATE
I would expect she has pain from her bunions and toes caused by rubbing on footwear and each other. I would also anticipate she has symptoms due to degenerative change involving the great toe MTP joint or metatarsalgia of the lesser rays.
I would expect she has pain from her bunions and toes caused by rubbing on footwear and each other. I would also anticipate she has symptoms due to degenerative change involving the great toe MTP joint or metatarsalgia of the lesser rays.
EXAMINER
Let’s say she has all these symptoms to varying degrees. Tell me about your further assessment.
Let’s say she has all these symptoms to varying degrees. Tell me about your further assessment.
CANDIDATE
I would complete the history, including questioning about relevant conditions such as diabetes, inflammatory arthritis vascular disease and neuropathy, and proceed to examination. I would assess her gait and the posture of the weighted foot as hallux valgus is often associated with apl anus foot. I would palpate for areas of tenderness, paying particular attention to the hallux MTP joint and lesser metatarsal heads. I would assess the range of movement of the involved joints and look for gastrocnemius tightness. Finally, I would also undertake a grind test to assess pain from loading the MTP joint. Neurovascular status will also be assessed.
I would complete the history, including questioning about relevant conditions such as diabetes, inflammatory arthritis vascular disease and neuropathy, and proceed to examination. I would assess her gait and the posture of the weighted foot as hallux valgus is often associated with apl anus foot. I would palpate for areas of tenderness, paying particular attention to the hallux MTP joint and lesser metatarsal heads. I would assess the range of movement of the involved joints and look for gastrocnemius tightness. Finally, I would also undertake a grind test to assess pain from loading the MTP joint. Neurovascular status will also be assessed.
EXAMINER
You spoke about assessing the range of movement of the involved joints. Can you be more specific?
You spoke about assessing the range of movement of the involved joints. Can you be more specific?
CANDIDATE
I would want to assess the range of plantar and dorsiflexion of the hallux MTP joint. It is also important to assess the movement at the first tarso-metatarsal joint as excessive mobility will influence the surgical choice.
I would want to assess the range of plantar and dorsiflexion of the hallux MTP joint. It is also important to assess the movement at the first tarso-metatarsal joint as excessive mobility will influence the surgical choice.
EXAMINER
Okay, we might come back to that. Outline the value of plain radiographs in the management of hallux valgus.
Okay, we might come back to that. Outline the value of plain radiographs in the management of hallux valgus.
CANDIDATE
I would obtain weight-bearing AP and lateral radiographs of the foot. These would allow me to objectively measure various angles, assess uncovering of the sesamoids and look for evidence of arthritic change.
I would obtain weight-bearing AP and lateral radiographs of the foot. These would allow me to objectively measure various angles, assess uncovering of the sesamoids and look for evidence of arthritic change.
EXAMINER
Why weight-bearing?
Why weight-bearing?
CANDIDATE
Non-weight-bearing views tend to underestimate the severity of hallux valgus, and may give misleading information about alignment and relative metatarsal length.
Non-weight-bearing views tend to underestimate the severity of hallux valgus, and may give misleading information about alignment and relative metatarsal length.
EXAMINER
Keep going. What angles?
Keep going. What angles?
CANDIDATE

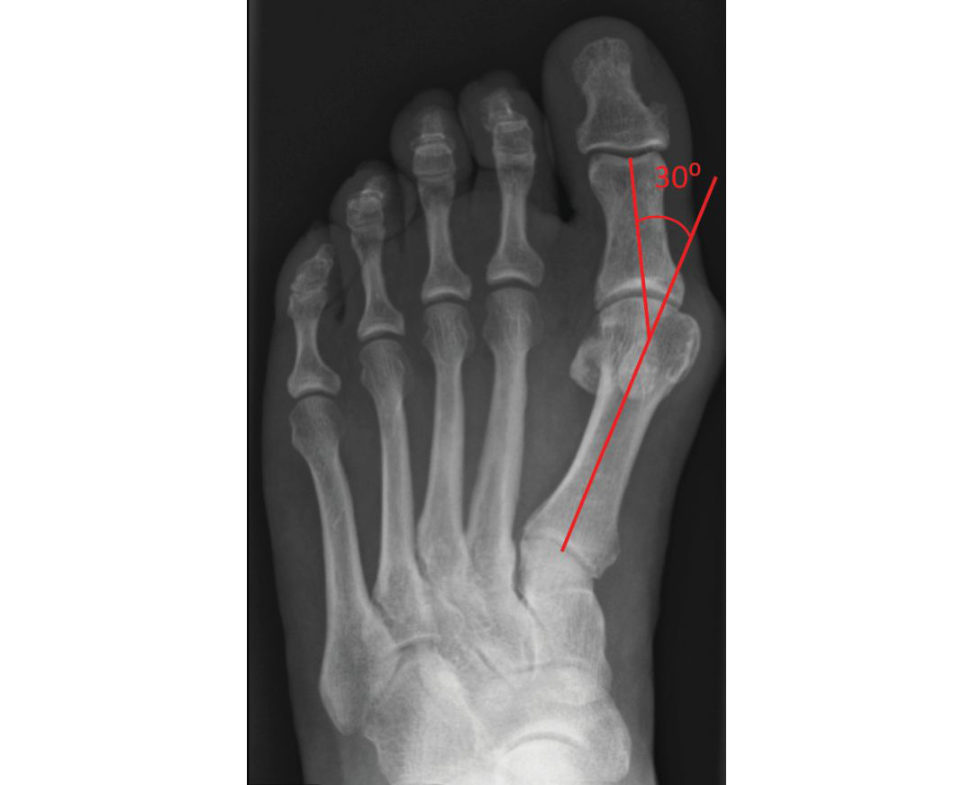

I would measure the intermetatarsal, hallux valgus and the distal metatarsal articular angles.
I would measure the intermetatarsal, hallux valgus and the distal metatarsal articular angles.
EXAMINER
What is the normal range of these angles and how would these influence your management? Can you demonstrate these angles on the radiographs (Figures 5.10–5.13)?
What is the normal range of these angles and how would these influence your management? Can you demonstrate these angles on the radiographs (Figures 5.10–5.13)?
CANDIDATE
The intermetatarsal angle is normally less than 9°, the hallux valgus angle should be less than 15° and the distal metatarsal articular angle is normally a maximum of 15°. The degree of deformity helps determine the surgical options.
The intermetatarsal angle is normally less than 9°, the hallux valgus angle should be less than 15° and the distal metatarsal articular angle is normally a maximum of 15°. The degree of deformity helps determine the surgical options.
EXAMINER
What about these radiographs?
What about these radiographs?
CANDIDATE
These demonstrate severe hallux valgus with an HVA 50°, IMA 22° and DMAA 8° (Figures 5.14–5.16).
These demonstrate severe hallux valgus with an HVA 50°, IMA 22° and DMAA 8° (Figures 5.14–5.16).
EXAMINER
If this lady had an intermetatarsal angle of 15° on the right with a hallux valgus angle of 35° and minimal passive correction of the hallux, what surgery would you plan?
If this lady had an intermetatarsal angle of 15° on the right with a hallux valgus angle of 35° and minimal passive correction of the hallux, what surgery would you plan?
CANDIDATE
If the first tarso-metatarsal joint is not lax, I would plan a scarf osteotomy combined with a lateral release and an Akin osteotomy of the proximal phalanx if necessary.
If the first tarso-metatarsal joint is not lax, I would plan a scarf osteotomy combined with a lateral release and an Akin osteotomy of the proximal phalanx if necessary.
EXAMINER
Why would you choose a scarf osteotomy?
Why would you choose a scarf osteotomy?
CANDIDATE
It is a very versatile procedure with stable fixation allowing early postoperative mobilization without a cast. It maintains the length of the metatarsal and facilitates translation angulation and depression of the metatarsal head as necessary. It can also be used to shorten or lengthen the metatarsal [23].
It is a very versatile procedure with stable fixation allowing early postoperative mobilization without a cast. It maintains the length of the metatarsal and facilitates translation angulation and depression of the metatarsal head as necessary. It can also be used to shorten or lengthen the metatarsal [23].
EXAMINER
How would you secure the osteotomy?
How would you secure the osteotomy?
CANDIDATE
With two headless compression screws.
With two headless compression screws.
EXAMINER
Why not use a simpler procedure such as a chevron or Mitchell osteotomy?
Why not use a simpler procedure such as a chevron or Mitchell osteotomy?
CANDIDATE
For the degree of deformity described, combined with the lack of passive correction of the hallux, I believe the correction that could be achieved with a distal osteotomy would be inadequate. A further disadvantage of a Mitchell osteotomy is that it produces shortening of the first metatarsal, which could lead to transfer metatarsalgia.
For the degree of deformity described, combined with the lack of passive correction of the hallux, I believe the correction that could be achieved with a distal osteotomy would be inadequate. A further disadvantage of a Mitchell osteotomy is that it produces shortening of the first metatarsal, which could lead to transfer metatarsalgia.
EXAMINER
Can you draw a scarf osteotomy?
Can you draw a scarf osteotomy?
CANDIDATE
No, sorry.
No, sorry.
source p. 307
EXAMINER
For your proposed management, what complications would you discuss when seeking consent?
For your proposed management, what complications would you discuss when seeking consent?
CANDIDATE
Firstly, I would advise that while early weight-bearing is possible with a scarf osteotomy, it takes up to a year for the foot to fully set ile after such surgery, but that typically 85% of patients are pleased with the outcome. I would advise a 1% risk of deep infection and as lightly higher risk of superficial infection Recurrence is possible with time, although the risk of this is greatest in adolescent cases. A minority of patients will have significant stiffness of the MTP joint afterwards and there can be sensory loss if the dorsomedial sensory nerve is injured. I would mention the possibility of hallux varus as a complication as this is difficult to treat. I would also mention the possibility of intraoperative and postoperative metatarsal fracture.
Firstly, I would advise that while early weight-bearing is possible with a scarf osteotomy, it takes up to a year for the foot to fully set ile after such surgery, but that typically 85% of patients are pleased with the outcome. I would advise a 1% risk of deep infection and as lightly higher risk of superficial infection Recurrence is possible with time, although the risk of this is greatest in adolescent cases. A minority of patients will have significant stiffness of the MTP joint afterwards and there can be sensory loss if the dorsomedial sensory nerve is injured. I would mention the possibility of hallux varus as a complication as this is difficult to treat. I would also mention the possibility of intraoperative and postoperative metatarsal fracture.
EXAMINER
How would you treat hallux varus?
How would you treat hallux varus?
CANDIDATE
A subtle varus may improve as the patient returns to normal footwear. While soft -tissue procedures such as abductor hallucis and medial capsular release or transferor a slip of EH Lare described for flexible deformity, arthrodesis of the first MTP joint arthrodesis is a reliable option in the presence of significant stiffness or arthrosis.
A subtle varus may improve as the patient returns to normal footwear. While soft -tissue procedures such as abductor hallucis and medial capsular release or transferor a slip of EH Lare described for flexible deformity, arthrodesis of the first MTP joint arthrodesis is a reliable option in the presence of significant stiffness or arthrosis.
EXAMINER
So, you have successfully treated this lady’s right foot and she is pleased with the result. Would you go ahead and do the same on the left?
So, you have successfully treated this lady’s right foot and she is pleased with the result. Would you go ahead and do the same on the left?
CANDIDATE
No. The absence of the second toe predisposes to recurrence and I would propose arthrodesis of the hallux MTP joint.
No. The absence of the second toe predisposes to recurrence and I would propose arthrodesis of the hallux MTP joint.
EXAMINER
One final question. What do we mean by a congruent versus incongruent hallux valgus (see Figures 5.17 and 5.18)?
One final question. What do we mean by a congruent versus incongruent hallux valgus (see Figures 5.17 and 5.18)?
CANDIDATE
If there is no lateral subluxation then the joint is congruent. A congruent first MTP joint is present when alignment of the articular joint surfaces of the metatarsal head and proximal phalanx base occurs in a slight valgus position. An incongruent joint exists when the toe is in a valgus orientation and the articular surfaces do not align properly or concentrically.
If there is no lateral subluxation then the joint is congruent. A congruent first MTP joint is present when alignment of the articular joint surfaces of the metatarsal head and proximal phalanx base occurs in a slight valgus position. An incongruent joint exists when the toe is in a valgus orientation and the articular surfaces do not align properly or concentrically.
EXAMINER
Thankyou.
Thankyou.
source p. 308
Figure 5.8 AP view of hallux valgus.
Figure 5.9 Oblique view of hallux valgus.
source p. 309
Figure 5.10 Hallux valgus angle (HVA). Angle between long axis of first metatarsal shaft and long a xis of first proximal phalanx. Normal < 15°. Mild 15–20°. Moderate 20–40°. Severe > 40°.
source p. 310
Figure 5.11 Hallux valgus interphalangeus angle (HVI). Angle between long axis of first distal phalanx and long axis of first proximal phalanx. Associated with congruent hallux valgus. Normal < 10°.
source p. 311
Figure 5.12 First to second intermetatarsal angle (IMA). Angle between long axis of first and second metatarsal shaft. Normal < 9°. Mild < 11°. Moderate 12–15°. Severe > 15°.
source p. 312
Figure 5.13 Distal metatarsal articular angle (DMAA). Angle between long axis of first metatarsal and perpendicular to a line along the articular surface. Increased angle associated with a congruent deformity. Normal < 10°.
source p. 313
Figure 5.14 Hallux valgus angle (HVA) (pronation oft oe). Normal < 15°.
source p. 314
Figure 5.15 Intermetatarsal angle (IMA) 22°. Normal < 9°.
source p. 315
Figure 5.16 Distal metatarsal articular angle (DMAA). Normal < 10°.
source p. 316
Figure 5.17 Congruent hallux valgus. Increased HVA, increased DMAA and congruent joint.
source p. 317
Figure 5.18 Incongruent hallux valgus. Increased HV Anormal DMAA and incongruent joint.
source p. 318
Structured oral examination question 7#
source p. 319
Hallux rigidus
EXAMINER
This 45-year-old male patient has presented with pain and stiffness of his right big toe. Describe the X-ray findings (see Figure 5.19).
This 45-year-old male patient has presented with pain and stiffness of his right big toe. Describe the X-ray findings (see Figure 5.19).
CANDIDATE
This is a radiograph of a right foot showing loss of joint space, osteophyte formation and sclerosis of the first metatarso-phalangeal joint in keeping with osteoarthritis. The reis also a mild hallux valgus deformity.
This is a radiograph of a right foot showing loss of joint space, osteophyte formation and sclerosis of the first metatarso-phalangeal joint in keeping with osteoarthritis. The reis also a mild hallux valgus deformity.
EXAMINER
So, what is this commonly called in orthopaedics?
So, what is this commonly called in orthopaedics?
CANDIDATE
Hallux rigidus.
Hallux rigidus.
EXAMINER
Tell me the range of movement of a healthy first MTP joint.
Tell me the range of movement of a healthy first MTP joint.
CANDIDATE
The joint should be able to dorsiflex between 70 and 90° and plantarflex between 24 and 40°.
The joint should be able to dorsiflex between 70 and 90° and plantarflex between 24 and 40°.
EXAMINER
How would you manage this patient?
How would you manage this patient?
CANDIDATE
First of all, I would take a full history and examine the foot. I would also obtain a weight- bearing lateral and an oblique X-ray of the foot in addition to the AP view we have here.
First of all, I would take a full history and examine the foot. I would also obtain a weight- bearing lateral and an oblique X-ray of the foot in addition to the AP view we have here.
EXAMINER
OK. If we concentrate on the clinical examination, what specific findings are you looking for to help with your management decision?
OK. If we concentrate on the clinical examination, what specific findings are you looking for to help with your management decision?
CANDIDATE
I would need to assess the integrity of the skin and the neurovascular status of the foot. I would then palpate for osteophytes and assess the range of movement of the first MTPJ and look to see whether the patient has pain limited to the extremes of movement or throughout the arc of motion. Often the first MTPJ is enlarged, erythematous and swollen. There may be medial-sided numbness present if the medial dorsal cutaneous nerve is compressed by an osteophyte. A grind test of the joint would be informative [24]. This testis usually done with the MTPJ in relative neutral dorsiflexion and can be a pointer to articular cartilage involvement [25]. I also need to evaluate the range of motion and look for any sign of degenerative change at the interphalangeal joint (IPJ).
I would need to assess the integrity of the skin and the neurovascular status of the foot. I would then palpate for osteophytes and assess the range of movement of the first MTPJ and look to see whether the patient has pain limited to the extremes of movement or throughout the arc of motion. Often the first MTPJ is enlarged, erythematous and swollen. There may be medial-sided numbness present if the medial dorsal cutaneous nerve is compressed by an osteophyte. A grind test of the joint would be informative [24]. This testis usually done with the MTPJ in relative neutral dorsiflexion and can be a pointer to articular cartilage involvement [25]. I also need to evaluate the range of motion and look for any sign of degenerative change at the interphalangeal joint (IPJ).
EXAMINER
What is the importance of the IPJ?
What is the importance of the IPJ?
CANDIDATE
Fusion of the first MTPJ may accelerate degeneration in the surrounding joints so if the IPJ is already symptomatic a motion-pr eserving procedure at the MTPJ may be more appropriate.
Fusion of the first MTPJ may accelerate degeneration in the surrounding joints so if the IPJ is already symptomatic a motion-pr eserving procedure at the MTPJ may be more appropriate.
EXAMINER
Are you aware of any grading systems for this condition?
Are you aware of any grading systems for this condition?
CANDIDATE
The most widely used is a radiographic grading by Hatirup and Johnson in which Grade 1 is a well-preserved joint space with mild to moderate osteophytes, Grade 2 has a reduced joint space with moderate osteophytes and Grade 3 is complete loss of joint space, marked osteophytes and there may be subchondral cysts within the metatarsal head [26].
The most widely used is a radiographic grading by Hatirup and Johnson in which Grade 1 is a well-preserved joint space with mild to moderate osteophytes, Grade 2 has a reduced joint space with moderate osteophytes and Grade 3 is complete loss of joint space, marked osteophytes and there may be subchondral cysts within the metatarsal head [26].
EXAMINER
Right, so talk me through the management options for apa tien t with hallux rigidus.
Right, so talk me through the management options for apa tien t with hallux rigidus.
source p. 320
CANDIDATE
In the first instance I would advise non-operativ e treatment. The options include activity modification, NS AIDS, footwear modification or an in tra-articular steroid injection.
In the first instance I would advise non-operativ e treatment. The options include activity modification, NS AIDS, footwear modification or an in tra-articular steroid injection.
EXAMINER
And the operative options?
And the operative options?
CANDIDATE
The operative options include cheilect omy with or without a dorsal closing wedge osteotomy of the phalanx (Moberg), fusion and arthroplasty. The choice depends on the grade of the arthritis, patient symptoms and expectations.
The operative options include cheilect omy with or without a dorsal closing wedge osteotomy of the phalanx (Moberg), fusion and arthroplasty. The choice depends on the grade of the arthritis, patient symptoms and expectations.
EXAMINER
So then, back to the operative options for treatment.
So then, back to the operative options for treatment.
CANDIDATE
In Grade 1 or 2 disease, a cheilectomy, in which the osteophytes and the dorsal 25–30% of the articular surface are resected. No more than one-third of the dorsal metatarsal head articular surface should be excised otherwise there is the risk of dorsal subluxation or overload on the remaining articular surface. Satisfaction rates of 90% have been reported, with improvement in dorsiflexion from 20 to 40°. For Grade 2 or 3 disease inpatients who are young and still highly active I would combine a cheilectomy with a Moberg dorsal closing wedge osteotomy of the proximal phalanx. This shitis the arc of movement further into the dorsiflexion range, reducing symptoms. For patients with severe disease and no ligamentous instability total joint replacement is an option, but early loosening has been a problem. Good results have been reported with hemiarthroplasty of either the metatarsal head or the base of the proximal phalanx, but few large series exist and neither is commonly used in the United Kingdom [28,29]. Arthrodesis of the first MTPJ is still the mainstay of treatment for severe disease and joint preparation with dome-shaped reamers and a lag screw and dorsal plate construct is the most biomechanically sound fixation [ 30]. Keller’s arthroplasty is an option in elderly , low-demand patients however, cock-up deformities and transfer metatarsalgia may develop.
In Grade 1 or 2 disease, a cheilectomy, in which the osteophytes and the dorsal 25–30% of the articular surface are resected. No more than one-third of the dorsal metatarsal head articular surface should be excised otherwise there is the risk of dorsal subluxation or overload on the remaining articular surface. Satisfaction rates of 90% have been reported, with improvement in dorsiflexion from 20 to 40°. For Grade 2 or 3 disease inpatients who are young and still highly active I would combine a cheilectomy with a Moberg dorsal closing wedge osteotomy of the proximal phalanx. This shitis the arc of movement further into the dorsiflexion range, reducing symptoms. For patients with severe disease and no ligamentous instability total joint replacement is an option, but early loosening has been a problem. Good results have been reported with hemiarthroplasty of either the metatarsal head or the base of the proximal phalanx, but few large series exist and neither is commonly used in the United Kingdom [28,29]. Arthrodesis of the first MTPJ is still the mainstay of treatment for severe disease and joint preparation with dome-shaped reamers and a lag screw and dorsal plate construct is the most biomechanically sound fixation [ 30]. Keller’s arthroplasty is an option in elderly , low-demand patients however, cock-up deformities and transfer metatarsalgia may develop.
EXAMINER
So, back to arthrodesis. What is the optimal position for fusion?
So, back to arthrodesis. What is the optimal position for fusion?
CANDIDATE
Dorsiflexion of 25° across the MTPJ, valgus of 10–15° and neutral rotation to ensure an effective plane of motion of the IP J.
Dorsiflexion of 25° across the MTPJ, valgus of 10–15° and neutral rotation to ensure an effective plane of motion of the IP J.
EXAMINER
How will you consent apa tien t for arthrodesis of the first MTPJ?
How will you consent apa tien t for arthrodesis of the first MTPJ?
CANDIDATE
I will explain that the aim of surgery is to relieve pain and optimize mobility. The risks and complications include wound healing problems, infection, damage to the medial cutaneous nerve, delayed union, malunion, non-union, metalwork irritation and accelerated degeneration in surrounding joints.
I will explain that the aim of surgery is to relieve pain and optimize mobility. The risks and complications include wound healing problems, infection, damage to the medial cutaneous nerve, delayed union, malunion, non-union, metalwork irritation and accelerated degeneration in surrounding joints.
EXAMINER
If we return to the patient we started discussing. He is a 45-year-old male who is a keen walker. He has significant stiffness and pain on mobilization and dorsiflexion, but a grind testis negative. He has exhausted non-operativ e measures. What treatment will you offer him?
If we return to the patient we started discussing. He is a 45-year-old male who is a keen walker. He has significant stiffness and pain on mobilization and dorsiflexion, but a grind testis negative. He has exhausted non-operativ e measures. What treatment will you offer him?
CANDIDATE
I would offer him a cheilectomy with a proximal phalanx osteotomy as this has the added benefit of improving range of movement over a cheilectomy on its own, although he will be made aware that the risks of this procedure are greater than a cheilectomy. I would also discuss fusion with him and explain that this may become necessary if a cheilectomy failed to provide sufficient relief or he had later progression of disease.
I would offer him a cheilectomy with a proximal phalanx osteotomy as this has the added benefit of improving range of movement over a cheilectomy on its own, although he will be made aware that the risks of this procedure are greater than a cheilectomy. I would also discuss fusion with him and explain that this may become necessary if a cheilectomy failed to provide sufficient relief or he had later progression of disease.
EXAMINER
He is not keen on the joint being stiffened up and has read on the internet about joint replacements and is keen for this.
He is not keen on the joint being stiffened up and has read on the internet about joint replacements and is keen for this.
CANDIDATE
I would inform him that for his age group there would be a significant risk of loosening of the prosthesis resulting in failure, thus the need for revision surgery. A recent systematic review of the literature by Stevens et al. indicated that arthrodesis is superior for improving clinical outcome and reducing pain with fewer complications and revisions compared to total joint replacement. They reported a 20.9% rate of prosthesis loosening causing instability and pain during gait and an 11% chance of revision surgery being required.
I would inform him that for his age group there would be a significant risk of loosening of the prosthesis resulting in failure, thus the need for revision surgery. A recent systematic review of the literature by Stevens et al. indicated that arthrodesis is superior for improving clinical outcome and reducing pain with fewer complications and revisions compared to total joint replacement. They reported a 20.9% rate of prosthesis loosening causing instability and pain during gait and an 11% chance of revision surgery being required.
EXAMINER
He is still not convinced.
He is still not convinced.
CANDIDATE
I would refer him to a colleague for a second opinion. [Bell] For the FRCS (Tr & Orth) exam joint replacement is very controversial.
I would refer him to a colleague for a second opinion. [Bell] For the FRCS (Tr & Orth) exam joint replacement is very controversial.
source p. 322
Figure 5.19 X-ray showing hallux rigidus.
source p. 323
References
1. Kibler WB. Arthroscopic findings in ankle ligament reconstruction . Clin Sports Med. 1996;15(4):799–804.
2. Saltzman CL, Salamon ML, Blanchard GM, et al. Epidemiology of ankle arthritis report of a consecutive series of 639 patients from a tertiary orthopaedic center. Iowa Orthop J. 2005;25:44–46.
3. Kellgren JH, Lawrence JS. Radiological assessment of osteoarthrosis. Ann Rheum Dis. 1957;16:494–501.
4. Repetto I, Bift B, Cerruft P, Trentini R, Felli L. Conservative treatment of ankle osteoarthritis: can platelet-rich plasma effectively postpone surgery? J Foot Ankle Surg. 2017;56(2):362–365.
5. van Valberg AA, van Roermund PM, Marijnissen AC, et al. Joint distraction in treatment of osteoarthritis: a tw o-year follow-up of the ankle. Osteoarthritis Cartilage. 1999;7:474–479.
6. Nguyen MP, Pedersen DR, Gao Y, Saltzman CL, Amendola A. Intermediate-term follow-up after ankle distraction for treatment of end-stage osteoarthritis . J Bone Joint Surg Am. 2015;97(7):590–596.
7. Wood PLR, Prem H, Suf ton C. Total ankle replacement: medium term results in 200 Scandinavian total ankle replacements. J Bone Joint Surg Br. 2008;90B(5):605–609.
8. Bonnin M, Gaudot F, Laurent J-R, et al TheS alto total ankle arthroplasty: survivorship and analysis of failures at 7 to 11 years. Clin Orthop Relat Res. 2011;469:225–236.
9. Mann JA, Mann RA, Hort onE. STAR ankle: long-term results. Foot Ankle Int. 2011;32(5):473–484.
10. Labek G, Klaus H, Schlichtherle R, et al. Revision rates after total ankle arthroplasty in sample-based clinical studies and national registries. Foot Ankle Int. 2011;32 (8):740–745.
11. Rosenbaum D, Tim taB, Schmiegel A, et al. First ray resection arthroplasty versus arthrodesis in the treatment of the rheumatoid foot. Foot Ankle Int. 2011;32(6):589–594.
12. Lee MA, Mason LW, Dodd sAL. The peri operative use of disease-modifying and biologic therapies in patients with rheumatoid arthritis undergoing elective orthopedic surgery. Orthopedics. 2010;33(4):257–262.
13. Howe CR, Gardner GC, Kadel NJ. Peri operative medication management for the patient with rheumatoid arthritis . J Am Acad Orthop Surg. 2006;14:544–551.
14. Scanzello CR, Figgie MP, Nestor BJ, Goodman SM. Peri operative management of medications used in the treatment of rheumatoid arthritis . HSS J. 2006;2(2):141–147.
15. Cole manS, Chestnut W. A simple test for hindfoot flexibility in the cavovarus foot. Clin Orthop Relat
Res. 1977;123:60–62.
16. A ‘too many toes sign’ will be present where more than one to two toes are seen along the lateral aspect of the affected foot.
source p. 324
17. Myerson MS, Corrigan J. Treatment of posterior tibial tendon dysfunction with flexor digitorum longus tendon transfer and calcaneal osteotomy. Orthopedics. 1996;19:383–388.
18. Abousayed MM, Alley MC, Shakked R, Rosenbaum AJ. Adult-acquired flafooot deformity: etiology , diagnosis, and management. JBJS Rev. 2017;5(8):e7.
19. Teasdall RD, Johnson KA. Surgical treatment of stage I posterior tibial tendon dysfunction . Foot Ankle
Int. 1994;15(12):646–648.
20. Myerson MS, Bade kasAS chon LC. Treatment of stage II posterior tibial tendon deficiency with flexor digitorum longus tendon transfer and calcaneal osteotomy. Foot Ankle Int. 2004;25(7):445–450.
21. Kell yIP, Easley ME. Treatment of stage 3 adult acquired flafooot. Foot Ankle Clin. 2001;6:153–166.
22. Chadwick C, Whitehouse SL, Saxby TS. Long-term follow-up of flexor digitorum longus transfer and calcaneal osteotomy for stage II posterior tibial tendon dysfunction . Bone Joint J. 2015;97(3):346–352.
23. Barouk LS, Toullec ET. Use of scarf osteotomy of the first metatarsal to correct hallux valgus deformity.
Tech Foot Ankle Surg. 2003;2(1):27–34.
24. This is done by rotating and axially loading the hallux MTPJ with the toe in relative neutral dorsiflexion and can be a pointer to articular cartilage involvement.
25. Patients who experience grind test pain with the MTPJ in neutral or plantar flexion often have more extensive disease than realized.
26. Hatirup SJ, Johnson KA. Subjective results of hallux rigidus following treatment with cheilectomy. Clin
Orthop Relat Res. 1988;226:182–191.
27. Moberg E. A simple operation for hallux rigidus. Clin Orthop Relat Res. 1979;142:55–56.
28. Taranow WS, Moutsatson MJ, Cooper JM. Contemporary approaches to Stage II and Stage III hallux rigidus: the role of metallic hemiarthroplasty of the proximal phalanx. Foot Ankle Clin N Am. 2005;10:713–728.
29. Carpenter B, Smith J, Motley T, et al. Surgical treatment of hallux rigidus using a metatarsal head resurfacing implant: mid-term follow-up. J Foot Ankle Surg. 2010;49:321–325.
30. Polift J, Hayes J, Njus G, et al. First metatarsal–phalangeal joint arthrodesis: a biomechanical assessment of stability. Foot Ankle Int. 2003;24(4):332–337.
